P1.95 Ball LED Display
Our Product Introduction
for more products please visit us on hdled-display.com
Basic Information
Place of Origin:
CHINA
Brand Name:
VEGOO
Certification:
CE ROHS FCC
Model Number:
VG-SUN88834
Minimum Order Quantity:
1pcs
Price:
negotiate
Packaging Details:
flight case/plywood box
Delivery Time:
25-35days
Payment Terms:
T/T
Supply Ability:
2000pcs/month
P1.95 Ball LED Display
Product Specification
Material:
Plastic
Pixel Pitch:
1.95mm
LED Lamp:
Nationstar SMD 1010
Brightness:
600nits
Grey Scale:
12bit
Refresh Rate:
3000Hz
Driving Method:
1/64 Scan
Average Power Consumption:
180w
Highlight:

P1.95 led ball display

,

SMD1010 led ball screen

P1.95 Ball LED Display
More Images
P1.95 Ball LED Display
P1.95 Ball LED Display
Our Product Introduction
for more products please visit us on hdled-display.com
Product Description

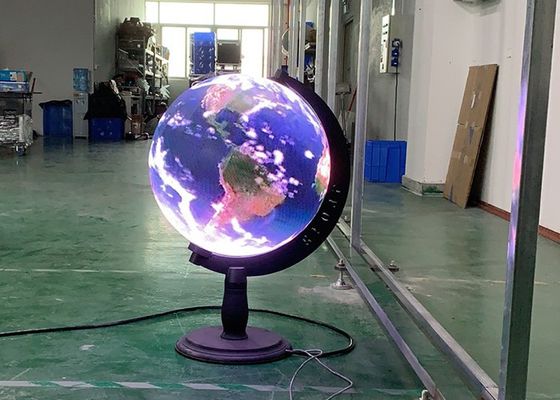

High Resolution Global P1.95 LED Display LED Ball 0.5m Diameter Sphere Video Penels





Our advantage:

  • At present, there are no balls lower than P2 on the market, our ball pixel pitch is P1.95;
  • The ball pixel pitch is less than P4 on the market, all are magnetic fixed modules, there will be insufficient magnets during use, the module cannot be fixed Phenomenon, and our ball is the only one on the market with a pitch less than P4 and fixed by a front maintenance screw;

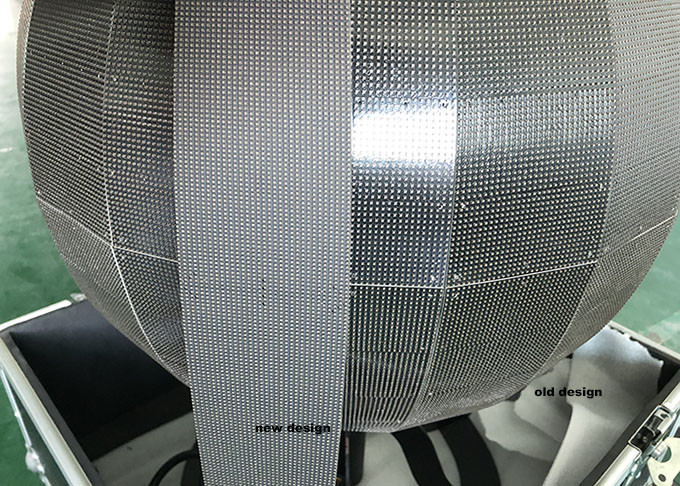

  • The ball with a diameter of 0.5 meters on the market is made of aluminum plate, which will cause a large gap in the assembly of the ball, and inevitable, and our ball is a plastic mold structure, which can well guarantee the gap;
  • The 0.5 meter ball on the market is divided into upper and lower plates, so that when assembled, there will be a clear equatorial line, our ball is one plate for upper and lower one,this structure avoids this phenomenon very well.





Product specification:



Part Number Value
Pixel Pitch 1.95mm
LED lamp Nation Star SMD 1010
Global Diameter(mm) 500mm
Total modules quantity 20pcs
Weight 30KG
Working Voltage AC 100-240V 50-60Hz
Brightness 600 nits
Grey scale 12 bit
Refresh Rate 3000 Hz
Driving Method 1/64 Scan
Average Power Consumption 180 w
Operating Temperature/Humidity -10 - 40 ℃/ 10% - 60%
Storage Temperature/Humidity/ -30 - 60 ℃/ 10% - 60%
Theoretical lifetime 100,000hour







Our Service:



1) Warrenty: 2years

2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )

3) Maintenance Mode :By returned maintenance , through express or by other way

4) Response time for maintenance :

Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;

Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;

On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
