|Product Name:||Ball LED Display||Pixel Pitch:||4mm|
|Pixel Configuration:||1R1G1B/SMD2121 Black Lamp||Density:||62,500 Pixel/m2|
|Moduel Size(L×W)mm:||256mm×128mm||Cabinet Size(L×W×H)mm:||512mm×512mm×90mm|
|Module Resolution:||64×32||Cabinet Resolution:||128×128|
|Driving Method:||1/16 Scan||Driving IC:||MBI5124 Or ICN 2038S|
|Color Temperature:||9500K—11500K||Horizontal Viewing Angle:||140º|

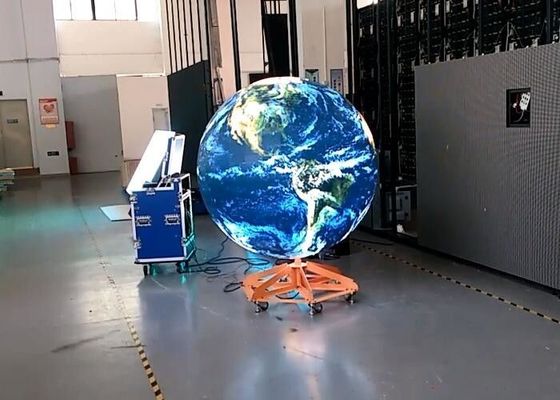

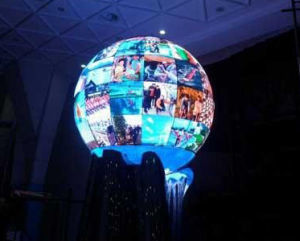

led video ball,
led display ball
Full Color Led Stage Backdrop Rental Video Display
1. even luminance
2. long service time
3. excellent character appearance
4, Super thin,light
P4 Indoor Full color LED Display Specification:
|Pixel Configuration||1R1G1B/SMD2121 Black lamp|
|Driving Method||1/16 Scan|
|Driving IC||MBI5124 or ICN 2038S|
|Brightness Adjustment||Auto and Manual|
|Power Consumption||Max Power:＜610W|
|Average power: ＜240W|
|Horizontal Viewing Angle||140º|
|Vertical Viewing Angle||140º|
|Signal Processing||10 or 14bit|
|Control Distance||cable100m,Multimode500m,Single mode 2km|
|Frame Frequency||65 Hz|
|The Opposite Calibration Curve||With Eight Optional Gamma Calibration Curve|
|Users can choose the recommended curve or adjust it based on actual situation|
|Life Span||100,000 Hours|
|Operating Temperature||Working : -20 - 65 ℃|
|Storage : -40 - 85 ℃|
|Environment Temperature||-30℃ to 60℃; humidity Rh10% to 95%|
|Operating System Platform||WindowsNT,Windows2000,WindowsXP,Windows7|
|Power Supply||AC 110–220V|
advertising media, sports stadiums, airport station integrated information dissemination, business
establishments, public area.
Our Service and Mission
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
