Payment & Shipping Terms:
|Product Name:||Ball LED Display||Pixel Pitch:||4mm|
|Pixel Configuration:||1R1G1B/SMD2121 Black Lamp||Density:||62,500 Pixel/m2|
|Moduel Size(L×W)mm:||256mm×128mm||Cabinet Size(L×W×H)mm:||512mm×512mm×90mm|
|Module Resolution:||64×32||Cabinet Resolution:||128×128|
|Driving IC:||MBI5124 Or ICN 2038S||Brightness:||1000cd/㎡|
|Horizontal Viewing Angle:||140º|

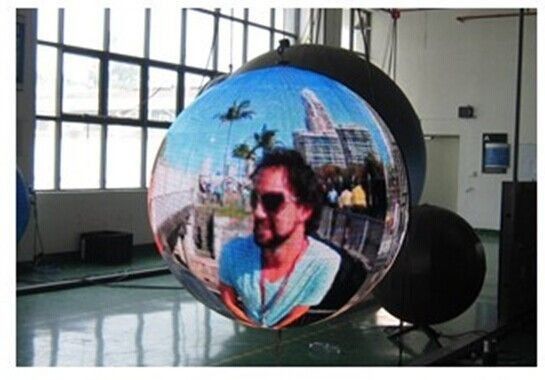

led ball screen,
led video ball
RGB video led display for logo/brand advertising indoor led screens rental stage
2: High definition
3: Energy saving 35%
4: Near vision distance
5. low power consumption
Safety. Using the low voltage DC so that no matter the elderly and children can safely operate without potential safety hazard.
Softness. Using PCB as the substrate and can apply to various advertising model requirements.
Long lifespan. The normal operating time is 100000 hours. If worked all the day long, it would work
for at least 10 years.
Energy conservation and environmental protection. Using the environmental materials and
low power (0.04W-0.08W) so that cannot result in waste and pollution.
Easily installation. Using attaching clamp, wire casing, iron wire, iron net and can install on all kinds
of undertake surface. It can also be installed by the double-sided adhesive because of the light weight.
Pure color. Using the high bright SMT and the color is pure, downy and no glare
P4 Indoor Full color LED Display Specification:
|Pixel Configuration||1R1G1B/SMD2121 Black lamp|
|Driving Method||1/16 Scan|
|Driving IC||MBI5124 or ICN 2038S|
|Brightness Adjustment||Auto and Manual|
|Power Consumption||Max Power:＜610W|
|Average power: ＜240W|
|Horizontal Viewing Angle||140º|
|Vertical Viewing Angle||140º|
|Signal Processing||10 or 14bit|
|Control Distance||cable100m,Multimode500m,Single mode 2km|
|Frame Frequency||65 Hz|
|The Opposite Calibration Curve||With Eight Optional Gamma Calibration Curve|
|Users can choose the recommended curve or adjust it based on actual situation|
|Life Span||100,000 Hours|
|Operating Temperature||Working : -20 - 65 ℃|
|Storage : -40 - 85 ℃|
|Environment Temperature||-30℃ to 60℃; humidity Rh10% to 95%|
|Operating System Platform||WindowsNT,Windows2000,WindowsXP,Windows7|
|Power Supply||AC 110–220V|
advertising media, sports stadiums, airport station integrated information dissemination, business
establishments, public area.
Shenzhen WeiGu Electronic Technology Co., Ltd is one of leading high-tech manufacturer for LED display, LED lighting and related LED photoelectric engineering. Our factory covers an area of nearly 10, 000 square meter, monthly production reach to 8, 000 square meters of LED display with 15 sets high-speed SMD machine. Mass production ensures the uniformity and stability of all raw materials. Through resource integration, comprehensive integrated solutions, we providing more thoughtful services to our customers with ensuring the products quality and reduce cost effectively.
"Staff are first, customers are highest "is the basic philosophy that we'v been insisting since WeiGu LED founded. Our company aim to build a team like wolfs with ability of learning-oriented, high execution, cohesion. Library was been set up for staff learning and relaxation. We also set up volunteer team to reveal enterprise positive energy. Company's overall image and working environment and positive energy has attracted a group of senior technological team and formed from the LED components to the LED terminal product research and development, manufacture complete industry scale.
Contact Person: Mrs. Linda Ma
