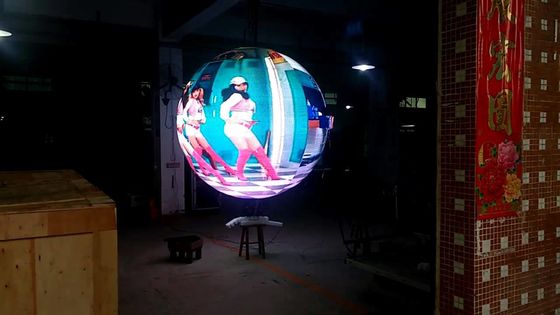

HD Advertising Commercial Led Display P4 Led Screen 1000cd/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 35-60 working days |
|
Detail Information |
|||
| Product Name: | Ball LED Display | Pixel Pitch: | 4mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Density: | 62,500 Pixel/m2 |
| Moduel Size(L×W)mm: | 256mm×128mm | Cabinet Size(L×W×H)mm: | 512mm×512mm×90mm |
| Module Resolution: | 64×32 | Driving Method: | 1/16 Scan |
| Brightness: | 1000cd/㎡ | Color Temperature: | 9500K—11500K |
| Horizontal Viewing Angle: | 140º | ||
| High Light: | led ball screen,led video ball |
||
Product Description
High Definition P4 SMD Full Color Curved Led Display
Description:
1. Light and slim cabinet allows quick build screen in short time.
2. Die-cast aluminum molding technology produces high precision and rigid cabinet. It can ensure the whole screen in good uniformity.
3. Cabinet size is 256mm×128mm ,unit cabinet weighs 11kgs. It's ideal for rental installation occasions which require small manpower and quick set up.
4. Four sets fast lock locate in left and right side, so does up and down side. Without professional tooling, only two hands still can lock the screen.
5. Separate power and receiving card control box design allows completely replace if it failures to work.
6. Suitable places:large-scale outdoor concerts and large-scale celebration party, also indoor rental occasions and indoor fix installations.
Applications:
Stage Background
Airport Station
Television Relay
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
Reliability Test
In order to avoid the potential defects caused in the design and production , we conduct a series of reliability test such as the electronic performance test for the semi-finished products , the anti dust test, the waterproof test , the anticorrosion test( salty spraying test ), the vibration test and thermal shock tester etc. The reliability test for the semi-finished products: Before gluing semi-finished modules , more than 48 hours aging should be made in the high temperature for all the modules , After QC inspection ok then can package itThe reliability test for the finished products.: After assembling finished modules to the led cabinets and simulating the assembly for the whole cabinets , we keep them aging for more than 72 hours , if no defects found , then we will delivery goods to our customers .The waterproof test : During the rainy seasons , the waterproof performance for the outdoor led display is quite important. the performs high-press water spraying as well as against the front cabinet to ensure, if waterproof test in good conditions , therefore , protection rate can reach IP65The anti corrosion test : In order to ensure the reliability of anti corrosion of the PCB and cabinet , hence the salty spraying test must be made during the productions Vibration test : For different kind of screens , in order to ensure the reliability of transportation and moving , therefore , the simulated vibration test must be conducted .The environment test : The real outdoor environment can ensure the effects of display in factory are the same as the spot effects
