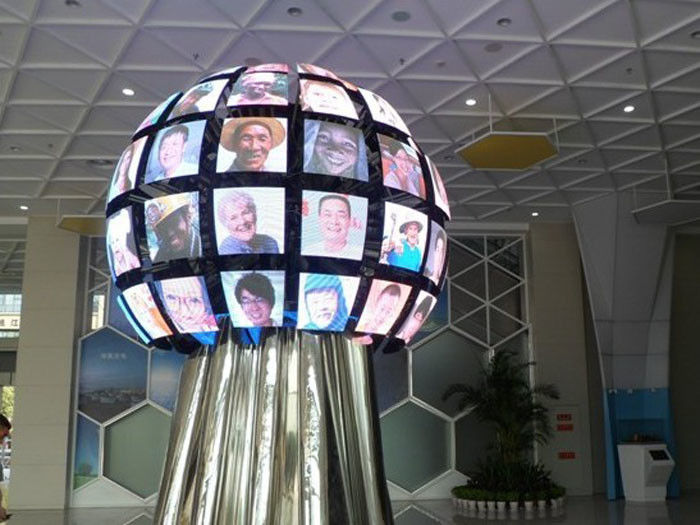

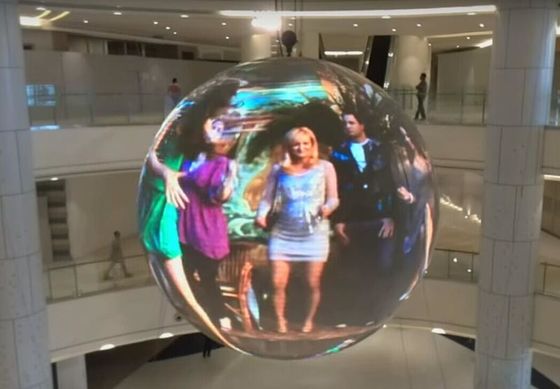

High Definition Led Screen Ball , P4 SMD Full Color Curved Led Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 35-60 working days |
|
Detail Information |
|||
| Product Name: | Ball LED Display | Pixel Pitch: | 4mm |
|---|---|---|---|
| Density: | 62,500 Pixel/m2 | Cabinet Size(L×W×H)mm: | 512mm×512mm×90mm |
| Brightness: | 1000cd/㎡ | Contrast: | 1000:1 |
| Color Temperature: | 9500K—11500K | Horizontal Viewing Angle: | 140º |
| High Light: | led ball screen,led video ball |
||
Product Description
P4 SMD Full Color Curved Led Display High Definition
Description:
P4 SMD high definition full color flexible led ball display
1.wide viewing angle
2.hi-uniformity
3.CE,ROHS,FCC
4.tech supp
Applications:
Stage Background
Airport Station
Television Relay
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
Reliability Test
In order to avoid the potential defects caused in the design and production , we conduct a series of reliability test such as the electronic performance test for the semi-finished products , the anti dust test, the waterproof test , the anticorrosion test( salty spraying test ), the vibration test and thermal shock tester etc. The reliability test for the semi-finished products: Before gluing semi-finished modules , more than 48 hours aging should be made in the high temperature for all the modules , After QC inspection ok then can package itThe reliability test for the finished products.: After assembling finished modules to the led cabinets and simulating the assembly for the whole cabinets , we keep them aging for more than 72 hours , if no defects found , then we will delivery goods to our customers .The waterproof test : During the rainy seasons , the waterproof performance for the outdoor led display is quite important. the performs high-press water spraying as well as against the front cabinet to ensure, if waterproof test in good conditions , therefore , protection rate can reach IP65The anti corrosion test : In order to ensure the reliability of anti corrosion of the PCB and cabinet , hence the salty spraying test must be made during the productions Vibration test : For different kind of screens , in order to ensure the reliability of transportation and moving , therefore , the simulated vibration test must be conducted .The environment test : The real outdoor environment can ensure the effects of display in factory are the same as the spot effects
