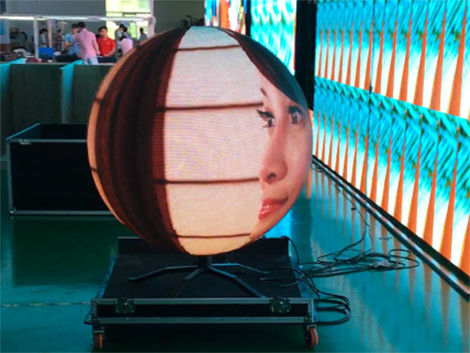

SMD P4 Indoor Full Color Sphere Led Ball Display Curved Led Panel
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P4 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 35-60 working days |
|
Detail Information |
|||
| Product Name: | Ball LED Display | Pixel Pitch: | 4mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Density: | 62,500 Pixel/m2 |
| Moduel Size(L×W)mm: | 256mm×128mm | Cabinet Size(L×W×H)mm: | 512mm×512mm×90mm |
| Module Resolution: | 64×32 | Horizontal Viewing Angle: | 140º |
| Highlight: | led ball screen,led video ball |
||
Product Description
SMD P4 Indoor Full Color Sphere Led Display Curved Led Panel Ball Shaped
Description:
> SMD2121 LED Package: Provide wider viewing angles and extremely close viewing distances.
> Advanced Video Processing: Produce crystal-clear, detailed image with smooth motion reproduction.
> HD-Ready Delivery: Deliver image feeds in both standard and high-definition formats.
> Full-Depth Image Calibration: Provide a uniform display picture through factory and field calibration.
> We adop pixel inspection technology which can find out the broken lamp or other parts of LED Screen
automatically, it is more convenient for maintenance.

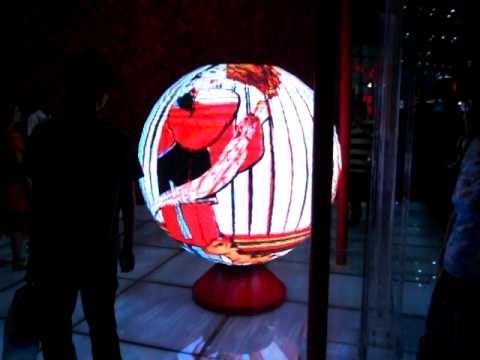

Applications:
advertising media, sports stadiums, airport station integrated information dissemination, business
establishments, public area.
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
Led ball display advantages:
- Seamless assembly
Custom design to the stair route. Components are assembled seamlessly.
- Easy installation
Three solutions designed for your specific case: floor installation, hanging installation & embedded installation.
- Efficient heat dissipation
Completely aluminum structural heat dissipation solution.
- Simple & easy control
Compatible with advanced synchronous control system, and support off-line & on-line modes.
- Uniform pixel design
Adopting uniform pixel design technology, no image distortion.
- Easy maintenance
Easily maintained by both front and rear surface.
