Customized High Brightness Led Display Ball P4 Led Display Full Color
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 35-60 working days |
|
Detail Information |
|||
| Product Name: | Ball LED Display | Pixel Pitch: | 4mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Density: | 62,500 Pixel/m2 |
| Moduel Size(L×W)mm: | 256mm×128mm | Cabinet Size(L×W×H)mm: | 512mm×512mm×90mm |
| Color Temperature: | 9500K—11500K | Horizontal Viewing Angle: | 140º |
| High Light: | led ball screen,led video ball |
||
Product Description

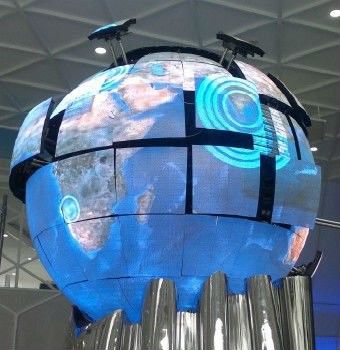

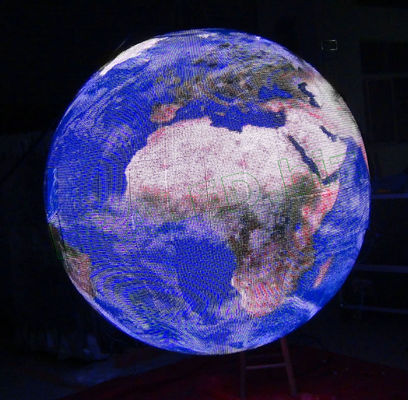

Customized High Brightness P4 LED Display Screen
Description:
We are advertising LED display screen manufacturer and global wholesaler of large outdoor and indoor
full color electronic LED matrix display screens, LED signs and LED screens used for mayor advertising
campaigns; placed next to highways, or LED message and video displays for football stadiums, electronic
arrival and departure airport displays signs, LED screen displays for schools or shops and malls to
highlight products and services.
· Our LED display signs have the ISO9001:2000 Quality System Certification;
· CE Certification of our led display signs;
· Rohs Certificates;
· Excellent, Technical Innovation;
· Price performance ratio;
· Contract Performance and Credibility;
· LED Displays with high brightness LED´s;
· Modular LED display screens;
· Our LED Display Screens have two years warranty ;
· Post sale assistance (after sale);
· High expertise and know-how about LED display products;
Personalized sale and less than 24 hours response on all inquiries.
Applications:
This kind of LED 1R1G1B full color led display is appliled for displaying advertising, city beautifying,
information publicity, great concerns and relative activities.
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
Services Before-sale:
Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.
Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :
Try the best to meet the reasonable demands by clients Provisional changed .
Keep close touch with the clients during the period if installation .
Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:
Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.
You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
