Light Weight P4 Indoor Led Screens / Display Hire MBI5124 / ICN 2038S
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 35-60 working days |
|
Detail Information |
|||

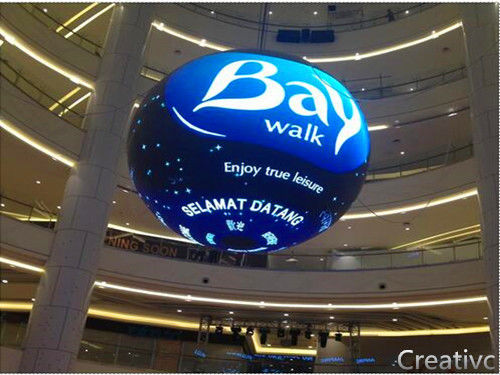

| Product Name: | Ball LED Display | Pixel Pitch: | 4mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Density: | 62,500 Pixel/m2 |
| Driving Method: | 1/16 Scan | Driving IC: | MBI5124 Or ICN 2038S |
| Brightness: | 1000cd/㎡ | Contrast: | 1000:1 |
| Color Temperature: | 9500K—11500K | Horizontal Viewing Angle: | 140º |
| High Light: | led ball screen,led display ball |
||
Product Description
Light weight P4 Indoor Led Screens / Display Hire MBI5124 or ICN 2038S
Description:
> Light weight
> Quick dismounting
> Low release heat
> Full compatible
Protection
dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
Advantages:
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.
3. Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively.
The effect of the display will be more clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful
5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
6. Full compatible: new structure design which can demand the indoor displays’ require.
Competitive Advantage:
1, Good quality
2, Good price
3, Good 24hours service
4, Promote delivery
5, Energy-saving
6, Small order accepted
