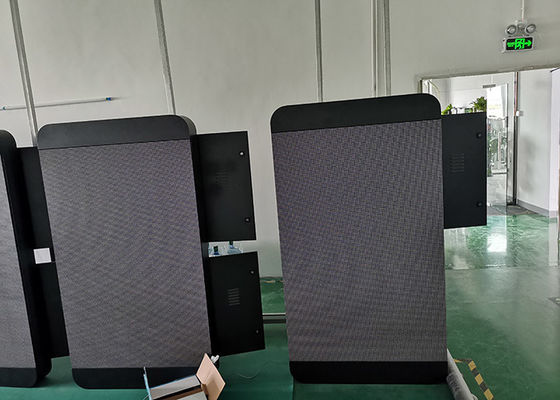

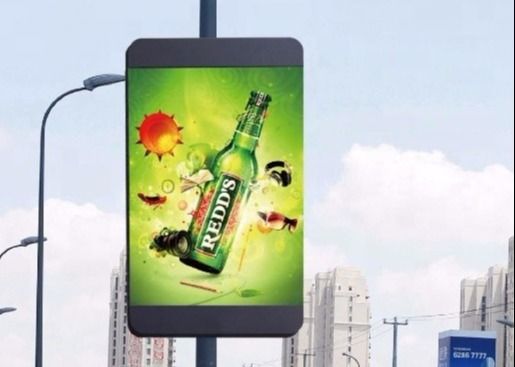

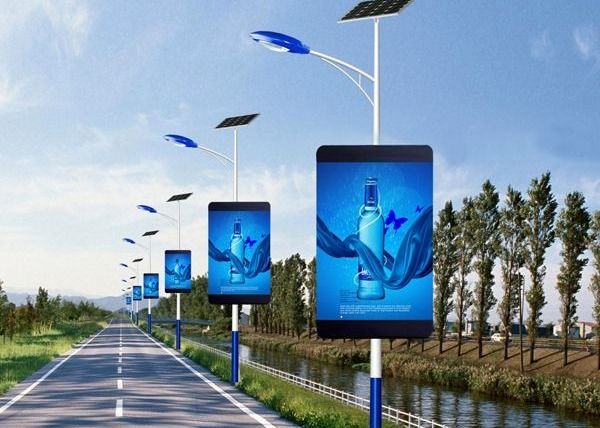

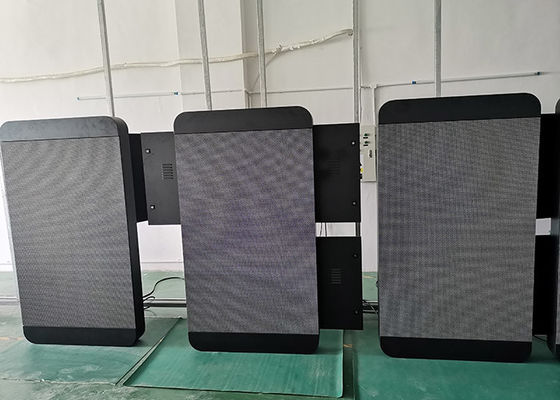

WIFI /3G/ 4G P5mm High Brightness Outdoor Pole LED Display Panel / Waterproof Lighting Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE FCC |
| Model Number: | P5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 8-15 working day |
| Payment Terms: | T/T,EXW,FOB,CIF |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Product: | P5 SMD Full Color Outdoor LED Display | Module SizeLED Lamp: | 160*160mm |
|---|---|---|---|
| Standard Cabinet Size: | 640*640mm | Module Resolution: | 32*32 |
| Module Consumption: | 25W/pcs | Max Power Consumption: | 1200W/m² |
| LED Lamp: | SMD2727 | Viewing Distance: | 5-150m |
| Highlight: | outdoor led panel,outdoor led advertising signs |
||
Product Description
Features:
1. Large-scale networking, unlimited number of LED display networks
2. the program is synchronized, the visual effect is better
3. Supporting data center server software, which can centrally manage all LED displays, group screen control, and view online status in real time.
4.the transmission speed is fast, suitable for sending videos, animations, pictures and other programs,
5. can install audio, monitoring, USB, etc.;
6. not limited by distance, easy to install and maintain;
7.The modular design of the product is convenient for maintenance and overhaul.
8. 3G / 4G card is universal.
9. the appearance of a variety of designs, enhance the image of the city, add color to the city, attract people to stop.
10. Set up a smart city to facilitate the public to travel.
| Pixel Pitch | 5 mm |
| Disply size | 960*1600mm(width*height) |
| Pixel Density | 40,000dot/m2 |
| Screen Resolution | 192x 320dot |
| Cabinet Weight | 90 kg |
| IP Rating (front/ back ) | IP 65 |
| Brightness | ≥6500nits |
| Max. Power Consumption | 930 W/sqm |
| Ave. Power Consumption | 300 W/sqm |
| Refresh Frequency | ≥1920 Hz |
| Operating Environment | OUTDOOR |
| Operating Temperature | -40℃~+70℃ |
| Operating Life | 100,000Hours |
Service
1) Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is fine for delivery, include waterproof testing and the vibration test .You can send your engineer to our factory for inspection before delivery.
2) Delivery (Time): FOB-china (15-20 working days after the advanced payment).
3) Installation: We offer you the engineer to install the LED display, but you have to pay for the tickets fare; or we offer you the training on the LED display installation and repairing for free after you live in our company,or we can guide you how to install the screen by remote control.
5) Spare parts: we offer: modules with driving board;power supply; power connecters; data cables; electrical fans some screws and so on.
6) Service after sales, if you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
warranty
Quality warranty: Two years quality warranty and lifetime technology support and maintenance from the third year. If you improperly operates or something is wrong with our products, we are responsible for the maintaining and repairs instruction or guide free of charge.
