Waterproof Dustproof 5mm Commercial Advertising LED Display Screen 9500K - 11500K
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10 days |
|
Detail Information |
|||
| Product Name: | P5 Outdoor Full Color Advertising Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2727 | Density: | 40,000 Pixel/m2 |
| Moduel Size(L×W)mm: | 320mm×160mm | Module Resolution: | 64×32 |
| Driving Method: | 1/8 Scan | Brightness: | 6000cd/㎡ |
| High Light: | full color outdoor led display,outdoor led panel |
||
Product Description

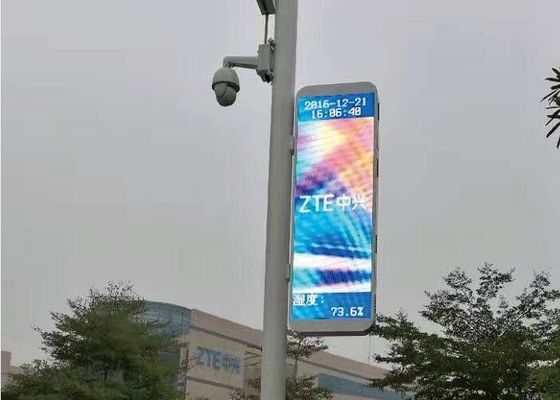

5mm Pole LED Display Commercial advertising LED display screen
Description:
Commercial advertising LED display screen.
Stadium perimeter LED display screen.
Mobile trailer LED display screen for mobile media.
Shopping mall LED display screen for logo showing.
Bank & stock exchange LED display screen for rates showing.
Train & bus station LED display screen.
Air port LED display screen.
Telecommunication LED display screen system for information showing and instruction.
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
P5 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| Density | 40,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 6000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜750W | ||||||||||
| Average power: ＜225W | |||||||||||
| Module Weight | 0.28kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 85-264V | ||||||||||
