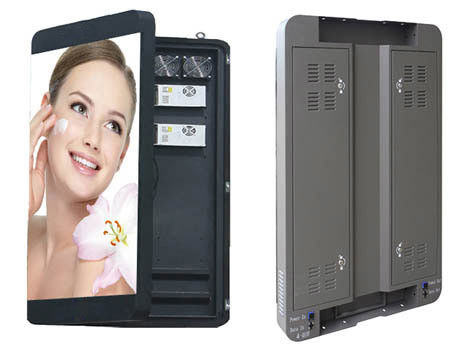

High Brightness P5mm Outdoor Led Display Outside Led Screen 6000cd/㎡

China High Brightness P5mm Outdoor Led Display Outside Led Screen 6000cd/㎡ supplier
High Brightness P5mm Outdoor Led Display Outside Led Screen 6000cd/㎡ supplier High Brightness P5mm Outdoor Led Display Outside Led Screen 6000cd/㎡ supplier

Large Image :  High Brightness P5mm Outdoor Led Display Outside Led Screen 6000cd/㎡

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE/ROHS/FCC/
Model Number: VG-SD P5

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 10 days
Contact Now
Detailed Product Description
Product Name: P5 Outdoor Full Color Advertising Display Pixel Pitch: 5mm
Pixel Configuration: 1R1G1B/SMD2727 Density: 40,000 Pixel/m2
Moduel Size(L×W)mm: 320mm×160mm Cabinet Size(L×W×H)mm: 960mm×960mm×130mm
Module Resolution: 64×32 Cabinet Resolution: 192×192



Self-checking 5mm Pole LED Display 1R1G1B/SMD2727





Description:



1. Innovative Design, Elegant appearance, with acrylic and Aluminum alloy material.
2. High brightness, anti-sunshine, Anti-dust and waterproof. Used for outdoor.
3. Easy installation, can be hanging , side mount and pretended installation.
4. Dynamic display, animation , pictures, etc.
5. Single and double sided display.





Self-checking Technique

Self-inspection, communication test, power test, temperature monitoring (Be customized)







P5 Outdoor Full color LED Display Specification



Product Name Specification
Pixel Pitch 5mm
Pixel Configuration 1R1G1B/SMD2727
Density 40,000 pixel/m2
Moduel Size(L×W)mm 320mm×160mm
Cabinet Size(L×W×H)mm 960mm×960mm×130mm
Module Resolution 64×32
Cabinet Resolution 192×192
Driving Method 1/8 Scan
Driving IC MBI5124 or ICN 2038S
Brightness 6000cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<750W
Average power: <225W
Module Weight 0.28kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 85-264V





Remote Control

Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)




Company Introduction



Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series. Such like: 1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.

Through the ways like cooperation with local customers, set up offices in local, WeiGu LED have set up a batch of after-sales service which can rapidly solve problems. For rapid response, to quickly solve customer problem, personalized solutions. Make the products and services reflect personalized, comprehensive, long cycle, less defects. WeiGu LED is located in Shiyan Town, Baoan district, Shenzhen. Positive response national green environmental protection, energy conservation and emission reduction policy in developing process. We continue to focus on the LED display, striving to become the world's highest cost-effective LED supplier, the solution to the overall service, with the attitude of a new high-speed development in LED display industry.
