High Resolution Led Display Indoor Full Color RGB Screen Easy Installation
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD 3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Supply Ability: | 3000 Sq.m / month |
|
Detail Information |
|||
| Product Name: | Stage LED Screens | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Moduel Size(L×W)mm: | 250mm×250mm |
| Cabinet Size(L×W×H)mm: | 500mm×500mm×90mm | Module Resolution: | 64×64 |
| Brightness: | 1000cd/㎡ | Contrast: | 1000:1 |
| High Light: | stage led display,stage led video wall |
||
Product Description
2. Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user programme the LED display screen system.
3. Convenient servicing. Front and rear cabinet access makes maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
4. The list of availabe models of our LED display/screen/panels/signs.P3mm, P4mm, P5mm, P6mm, P7.62mm, P10mm, P12mm, P16mm, P20mm, P25mm, and ect.

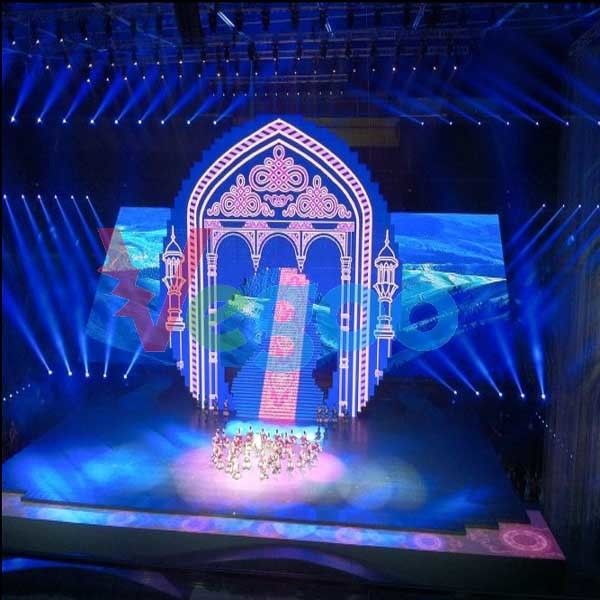

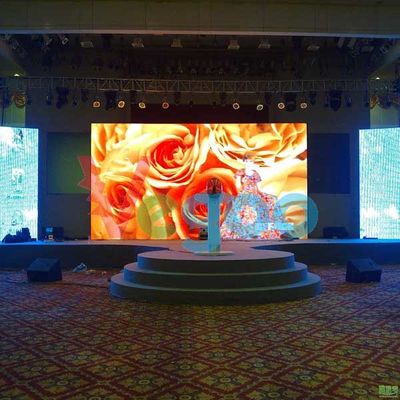

Using Range :
P3.91 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 3.91mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 65,536 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 128×128 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜600W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Module Weight | 0.52kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 160º | ||||||||||
| 18 | Vertical Viewing Angle | 120º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
