P3.91 Stage LED Screens

China P3.91 Stage LED Screens supplier
P3.91 Stage LED Screens supplier P3.91 Stage LED Screens supplier P3.91 Stage LED Screens supplier P3.91 Stage LED Screens supplier P3.91 Stage LED Screens supplier P3.91 Stage LED Screens supplier

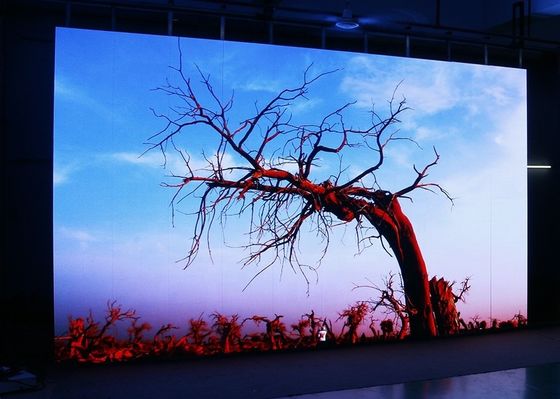

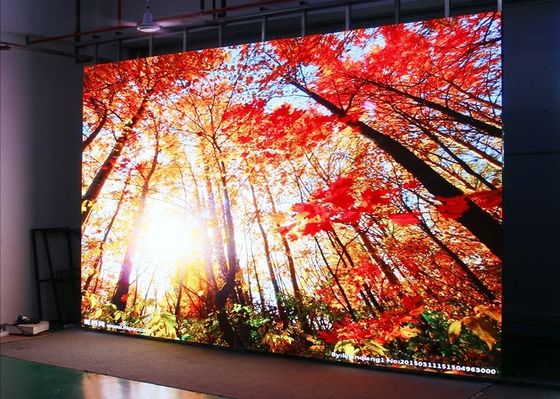

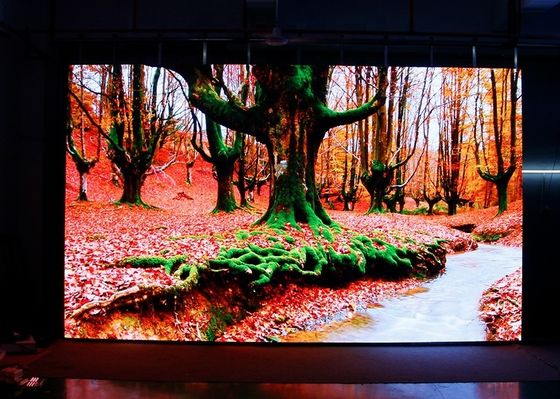

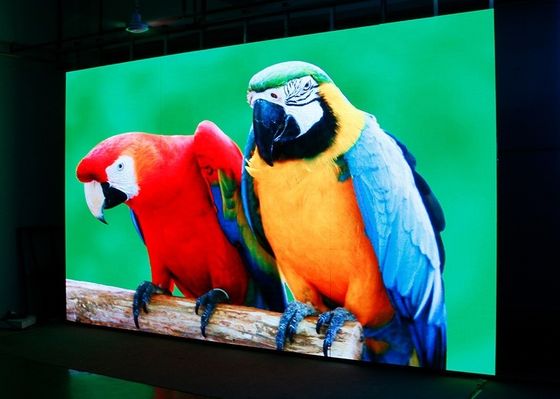

Large Image :  P3.91 Stage LED Screens

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE
Model Number: P3.91-dh-2

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Price: $950-$1100
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 10-20 days
Payment Terms: T/T
Supply Ability: 8000sqm/month
Contact Now
Detailed Product Description
Pixel Pitch: 3.91mm Density: 65,536 Pixel/m2
Moduel Size(L×W)mm: 250mm×250mm Cabinet Size(L×W×H)mm: 500mm×500mm×90mm
Vertical Viewing Angle: 140º Cabinet Weight: 11.5kg
High Light:

P3.91 led stage curtain screen

,

140º led stage screen

P3.91 Outdoor Stage Background LED Display Big Screen Rental Led Display LED Video Wall high quality full color



Product Details

1.Kinglight or Nation Star LED lamp is used in led module, 48 hours' module aging test and 72 hours' led screen aging test before packing.

2. It adopts die-cast aluminum box, which is not easy to be deformed, anti-corrosion, fast heat dissipation and prolong product service life.

3. Lightweight and easy to transport and install.

4. Stainless steel lock connection, more stable, stable and safe.

5.Has a large Angle, color uniformity, low failure rate and easy maintenance.

6. Die-cast aluminum disposable Compression molding, high precision, seamless splicing.

7. Professional aviation plug/flight connestor, beautiful and stable, low power loss.



P3.91 Outdoor Full color LED Display Specification
NO: Product Name Specification
1 Pixel Pitch 3.91mm
2 Pixel Configuration 1R1G1B/SMD1921
3 Density 65,536 pixel/m2
4 Moduel Size(L×W)mm 250mm×250mm
5 Cabinet Size(L×W×H)mm 500mm×500mm×90mm
6 Module Resolution 64×64
7 Cabinet Resolution 128×128
8 Driving Method 1/16 Scan
9 Driving IC MBI5124
10 Brightness 4500cd/㎡
11 Contrast 5000 :1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<560W
14 Average power: <280W
15 Cabinet Weight 11.5kg
16 Color Temperature 2000K—9500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 16bit
20 Grey Processing 1024×1024×1024
16834×16834×16834
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
32 Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V/5V60Hz
36 Protection

waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

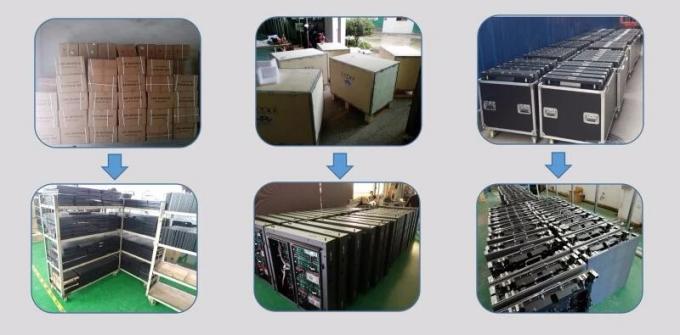

Package

P3.91 Stage LED Screens 0



Applications

P3.91 Stage LED Screens 1
