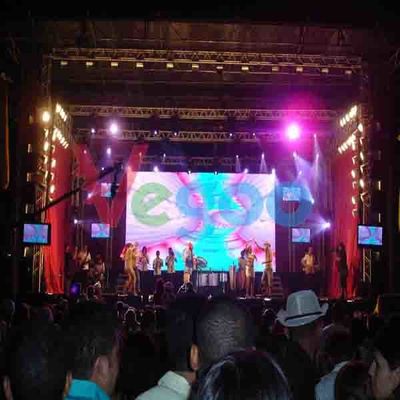

Indoor Full Color 3.91mm Stage Background Led Display Big Screen 1000cd/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Supply Ability: | 3000 Sq.m / month |
|
Detail Information |
|||
| Product Name: | Stage LED Screens | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Density: | 65,536 Pixel/m2 | Moduel Size(L×W)mm: | 250mm×250mm |
| Brightness: | 1000cd/㎡ | Contrast: | 1000:1 |
| High Light: | stage led display,stage background led screen |
||
Product Description
2. Text /image/information publish
3. Advertising
4. Safety function
5. Accurate system:no error occurs.
6. Response time :real time.
7. reaction function
8. Remote monitoring –details.
9. Remote and step on powering system
P3.91 Indoor Full color LED Display Specification
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 3.91mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 65,536 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| 6 | Module Resolution | 64×64 | ||||||||||
| 7 | Cabinet Resolution | 128×128 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜600W | ||||||||||
| 14 | Average power: ＜200W | |||||||||||
| 15 | Module Weight | 0.52kg | ||||||||||
| 16 | Color Temperature | 9500K—11500K | ||||||||||
| 17 | Horizontal Viewing Angle | 160º | ||||||||||
| 18 | Vertical Viewing Angle | 120º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V | ||||||||||
| 36 | Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
