Payment & Shipping Terms:
|Product Name:||P5 Outdoor Full Color Advertising Display||Density:||40,000 Pixel/m2|
|Moduel Size(L×W)mm:||320mm×160mm||Cabinet Size(L×W×H)mm:||960mm×960mm×130mm|
|Module Resolution:||64×32||Cabinet Resolution:||192×192|
|Driving Method:||1/8 Scan||Contrast:||1000:1|
outdoor led panel,
outdoor led advertising signs

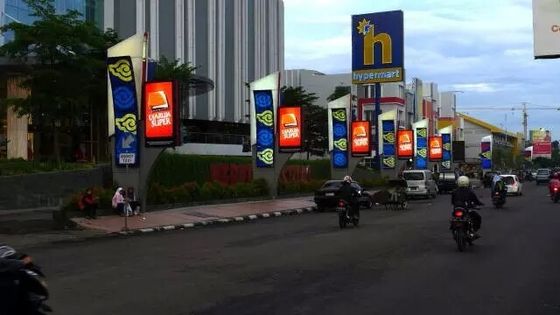

Outdoor gas station advertising pillar Led petrol price display screen totem pole signage
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
P5 Outdoor Full color LED Display Specification
|Driving Method||1/8 Scan|
|Driving IC||MBI5124 or ICN 2038S|
|Brightness Adjustment||Auto and Manual|
|Power Consumption||Max Power:＜750W|
|Average power: ＜225W|
|Horizontal Viewing Angle||140º|
|Vertical Viewing Angle||140º|
|Signal Processing||10 or 14bit|
|Control Distance||cable100m,Multimode500m,Single mode 2km|
|Frame Frequency||65 Hz|
|The Opposite Calibration Curve||With Eight Optional Gamma Calibration Curve|
|Users can choose the recommended curve or adjust it based on actual situation|
|Life Span||100,000 Hours|
|Operating Temperature||Working : -20 - 65 ℃|
|Storage : -40 - 85 ℃|
|Environment Temperature||-30℃ to 60℃; humidity Rh10% to 95%|
|Self-checking Technique||Self-inspection, communication test, power test, temperature monitoring (Be customized)|
|Operating System Platform||WindowsNT,Windows2000,WindowsXP,Windows7|
|Power Supply||AC 85-264V|
Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.
Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :
Try the best to meet the reasonable demands by clients Provisional changed .
Keep close touch with the clients during the period if installation .
Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.
You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
Contact Person: Mrs. Linda Ma
