Advertising Outdoor P5mm Street Pole LED Display MBI5124 / ICN 2038S
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10 days |
|
Detail Information |
|||
| Product Name: | P5 Outdoor Full Color Advertising Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2727 | Cabinet Resolution: | 192×192 |
| Driving Method: | 1/8 Scan | Driving IC: | MBI5124 Or ICN 2038S |
| Brightness: | 6000cd/㎡ | Contrast: | 1000:1 |
| Highlight: | full color outdoor led display,outdoor led advertising signs |
||
Product Description

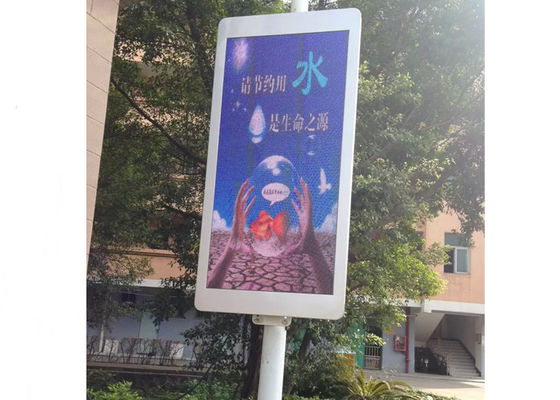

Outdoor Street Advertising Light Pole Led Display
Description:
1, High brightness,easy installation
2, Energy saving,Easy maintenance
3, Advanced dot adjusting
Self-adjustment function Automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition
It can be used in advertisement,stage,stadium,exhibition,TV-Show,mansion video wall,shopping mall,banks,schools,bus station,airport,gym,market,factories,monitoring certers,hospitals,bars etc.
P5 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| Density | 40,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 6000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜750W | ||||||||||
| Average power: ＜225W | |||||||||||
| Module Weight | 0.28kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 85-264V | ||||||||||
Protection
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :
1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
