P1.95 Ball LED Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-SUN88834 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiate |
| Packaging Details: | flight case/plywood box |
| Delivery Time: | 25-35days |
| Payment Terms: | T/T |
| Supply Ability: | 2000pcs/month |
|
Detail Information |
|||
| Material: | Plastic | Pixel Pitch: | 1.95mm |
|---|---|---|---|
| LED Lamp: | Nationstar SMD 1010 | Brightness: | 600nits |
| Grey Scale: | 12bit | Refresh Rate: | 3000Hz |
| Driving Method: | 1/64 Scan | Average Power Consumption: | 180w |
| Highlight: | P1.95 led ball display,SMD1010 led ball screen |
||
Product Description

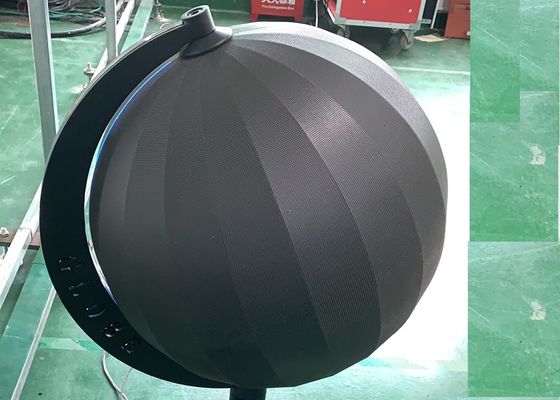

High Resolution Global P1.95 LED Display LED Ball 0.5m Diameter Sphere Video Penels
Our advantage:
- At present, there are no balls lower than P2 on the market, our ball pixel pitch is P1.95;
- The ball pixel pitch is less than P4 on the market, all are magnetic fixed modules, there will be insufficient magnets during use, the module cannot be fixed Phenomenon, and our ball is the only one on the market with a pitch less than P4 and fixed by a front maintenance screw;
- The ball with a diameter of 0.5 meters on the market is made of aluminum plate, which will cause a large gap in the assembly of the ball, and inevitable, and our ball is a plastic mold structure, which can well guarantee the gap;
- The 0.5 meter ball on the market is divided into upper and lower plates, so that when assembled, there will be a clear equatorial line, our ball is one plate for upper and lower one,this structure avoids this phenomenon very well.
Product specification:
| Part Number | Value |
| Pixel Pitch | 1.95mm |
| LED lamp | Nation Star SMD 1010 |
| Global Diameter(mm) | 500mm |

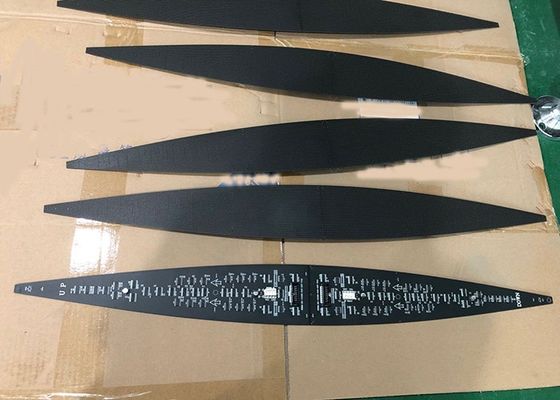

| Total modules quantity | 20pcs |
| Weight | 30KG |
| Working Voltage | AC 100-240V 50-60Hz |
| Brightness | 600 nits |
| Grey scale | 12 bit |
| Refresh Rate | 3000 Hz |
| Driving Method | 1/64 Scan |
| Average Power Consumption | 180 w |
| Operating Temperature/Humidity | -10 - 40 ℃/ 10% - 60% |
| Storage Temperature/Humidity/ | -30 - 60 ℃/ 10% - 60% |
| Theoretical lifetime | 100,000hour |
Our Service:
1) Warrenty: 2years
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
4) Response time for maintenance :
Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
