OEM customized LED pantallas P1.9 globe sphere ball display 0.5m diameter private individual module
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/CCC |
| Model Number: | VGBP1.9 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 square meter |
|---|---|
| Price: | USD8600-USD8760/Set |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 25-35 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000sq.m/month |
|
Detail Information |
|||
| Product Name: | Ball LED Display | Pixel Pitch: | 1.9mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD1515 Black Lamp | Density: | 62,500 Pixel/m2 |

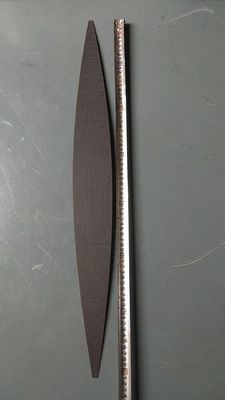

| Moduel Size(L×W)mm: | 1m Length,customized Flexible Module | Cabinet Size(L×W×H)mm: | Customized Flexible Size |
| Driving IC: | MBI5124 Or ICN 2038S | Brightness: | 1000cd/㎡ |
| Contrast: | 1000:1 | Color Temperature: | 9500K—11500K |
| Horizontal Viewing Angle: | 140º | Material: | Flexible Module |
| Cabinet Material: | Steel Structure | ||
| Highlight: | led ball screen,led display ball |
||
Product Description

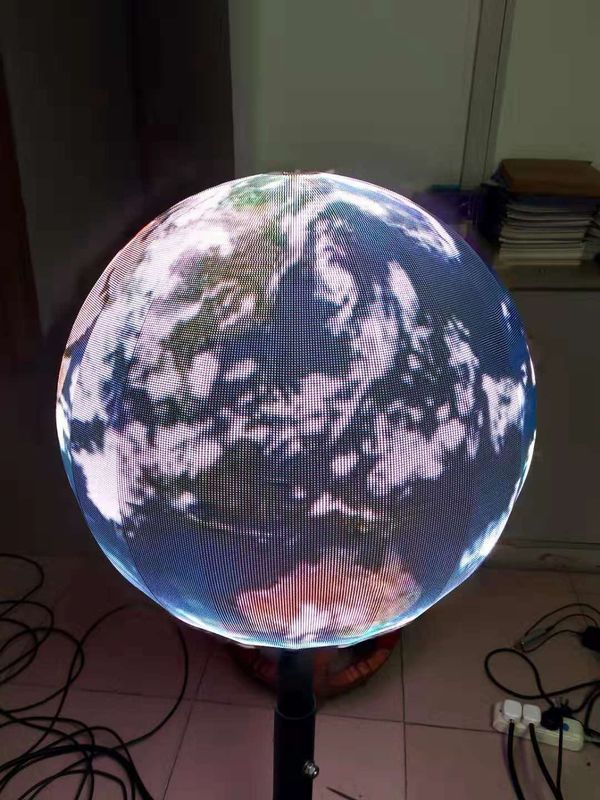

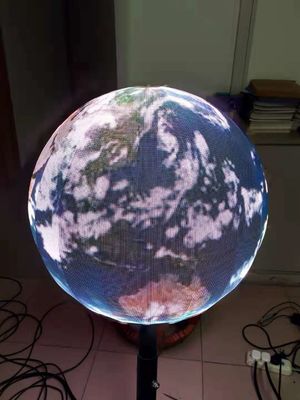

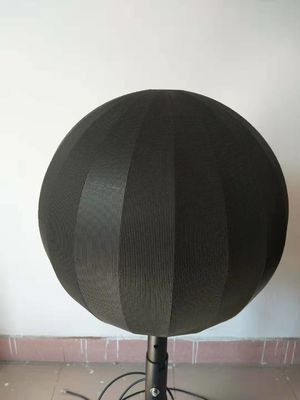

OEM customized LED pantallas P1.9 globe sphere ball display 0.5m diameter private individual module
INSPECTIONS
Product: RGB full color LED ball screen
Pixel pith: P1.9 mm
LED brand: NationStar
GW: 25kgs
Diameter: 0.5m (Option customized)

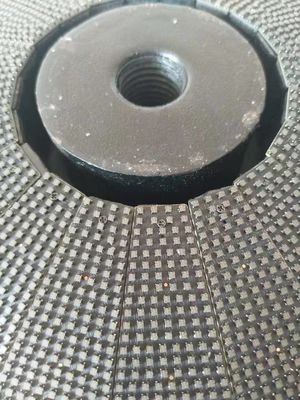

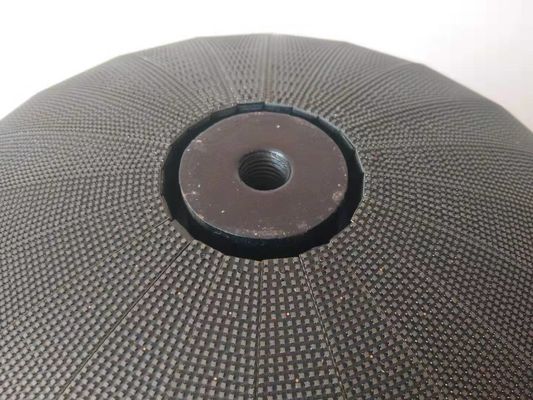

Module assembly: Screw fixed
Alternative offer: Dia - 1m/1.5m/2m/3m - P2/P2.8/P4
PRODUCTS FEATURES
Flexible service System
100.000 Lifespan
No Ghosting
Magnetic Modules
High Refresh Rate
High View Angles
High Contrast
Extremely Flat Module
Black LED Smd
Flexible Size Panel / Cabinet
Description:
We are advertising LED display screen manufacturer and global wholesaler of large outdoor and indoor
full color electronic LED matrix display screens, LED signs and LED screens used for mayor advertising
campaigns; placed next to highways, or LED message and video displays for football stadiums, electronic
arrival and departure airport displays signs, LED screen displays for schools or shops and malls to
highlight products and services.
1. Modular LED display screens
2. high brightness LED
3. Long Lifespan
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 1.9mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | OEM | ||||||||||
| Cabinet Size(L×W×H)mm | OEM | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz,3840 | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
Applications:
Indoor advertising media, sports stadiums, airport station integrated information dissemination, business
establishments, public area.
