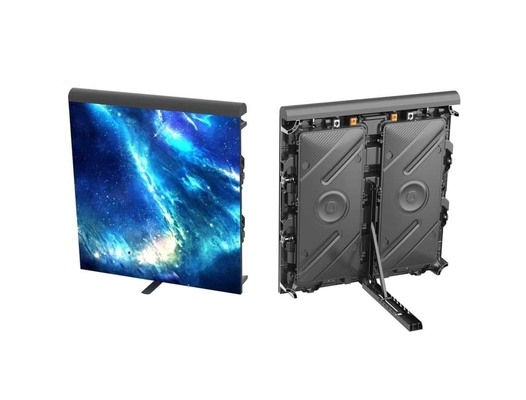

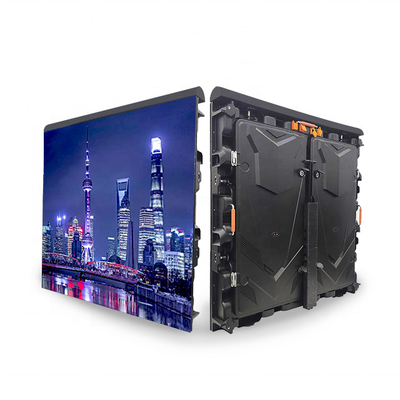

P10 Outdoor Sports Full Color LED Display For Stadiums 960x960mm With Soft Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1Sqm |
|---|---|
| Price: | 436-525dollars |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 3-5 days |
| Payment Terms: | T/T, Western Union, |
| Supply Ability: | 3000Sq.m |
|
Detail Information |
|||
| Product Name: | P10 Outdoor Full Color LED Display | Pixels: | 10mm, 6mm, 8mm, Other, P3.91 |
|---|---|---|---|
| Pixel Pitch: | 10mm | Density: | 10,000 Pixel/m2 |
| Cabinet Size(L×W×H)mm: | 960mm×960mm×130mm | Driving IC: | MBI5124 Or ICN 2038S |
| Brightness: | 7500CD /㎡ | Contrast: | 1000:1 |
| Highlight: | Soft Module Outdoor Sports LED Display,P10 Outdoor Sports LED Display,Full Color LED Display For Stadiums |
||
Product Description
P10 Outdoor Sports Full Color LED Display For Stadiums 960x960mm With Soft Module
Technology has changed and we have access to new gadgets. Many businesses are switching to football marketing in the sort of perimeter led display as the TV stream of matches keeps growing.
LED advertising is attractive, smart, and eye-catching, is it successful at NFL games? There are so many pros of using a perimeter LED display. Companies may use led perimeter display advertising to increase brand loyalty while driving sales. As you know that LEDs are a cost-effective solution, adding these lights for advertising purposes will be a great idea.

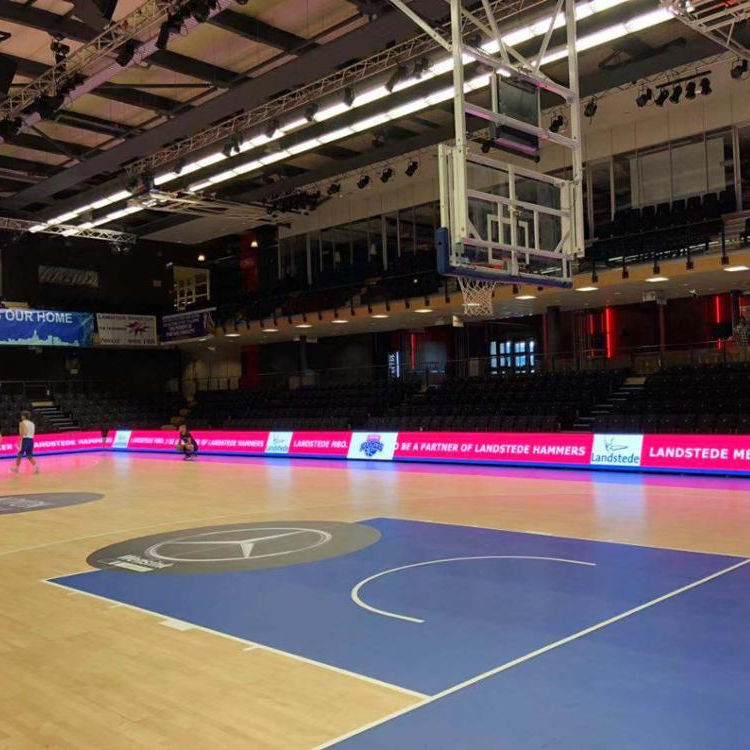

What is LED Perimeter?
In the field, a perimeter Led is an economical and beautiful show. It's the best for live broadcasting and television commercials. The screen can be installed throughout the stadium. You can picture the powerful and visible effect it has. The material of the show is managed quickly using modern stadium software. It may change the colors and modify color temperature dynamically, making it incredibly user-friendly. Perimeter lighting is a type of safety lighting that is used to illuminate large outdoor spaces. These can be a tree lighting, fluorescent lights installed on a high building, or high mast led lighting erected on long poles that lighten broad areas.
| Product Name | Specification | ||||||||||
| Pixel Pitch | 10mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| Density | 10,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 32×16 | ||||||||||
| Cabinet Resolution | 96×96 | ||||||||||
| Driving Method | 1/ 2 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 7500CD /㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 85-264V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Service and Guarantees
Services Before-sale:Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
