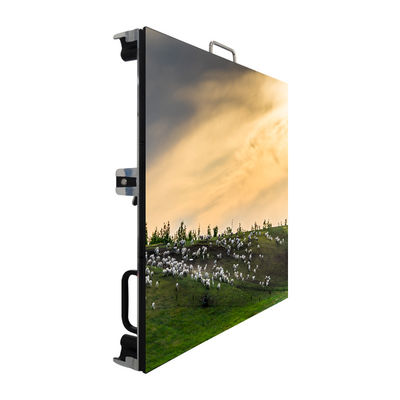

Advertising HD Digital P6 SMD3535 Outdoor Full Color LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | VG-P6-B |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | 6mm | Density: | 27,777 Pixel/m2 |
|---|---|---|---|
| Moduel Size(L×W)mm: | 192mm×192mm | Brightness: | 6500cd/㎡ |
| Highlight: | SMD3535 outdoor video wall,P6 programmable outdoor signs |
||
Product Description
full color P6 LED screen Outdoor HD LED displays digital screen modules billboard panel for advertising
| P6 Outdoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 6mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| 3 | Density | 27,777 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| 6 | Module Resolution | 32×32 | ||||||||||
| 7 | Cabinet Resolution | 96×96 | ||||||||||
| 8 | Driving Method | 1/8 Scan | ||||||||||
| 9 | Driving IC | FM6124 | ||||||||||
| 10 | Brightness | 6500cd/㎡ | ||||||||||
| 11 | Contrast | 6000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜810W | ||||||||||
| 14 | Average power: ＜405W | |||||||||||
| 15 | Cabinet Weight | 8.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
1. High refresh rate 2400Hz ,best scan method for energy saving, perfect 16bits grey level, exclusive technology on driving IC to remove ghost shadow and more pattern, good effect on photographing.

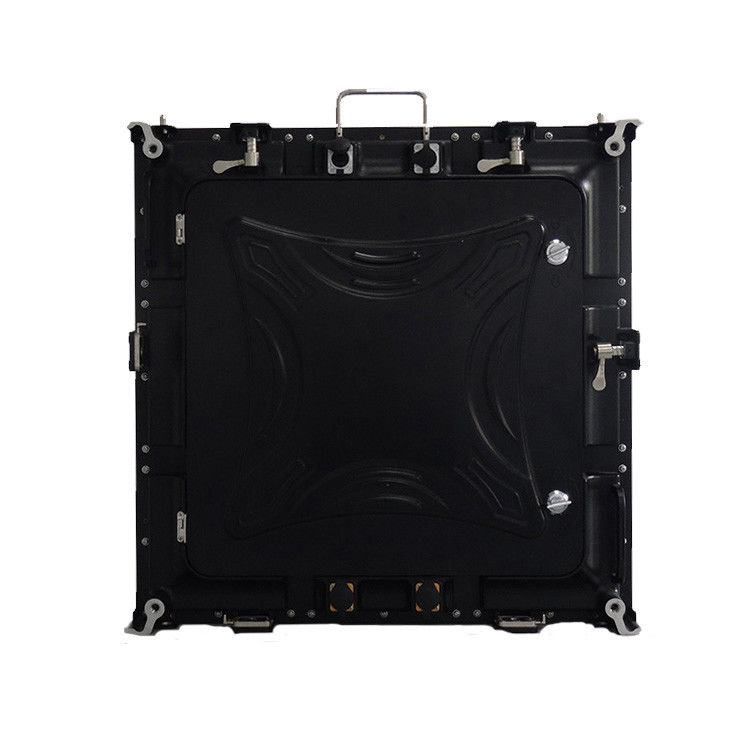

2. Thin: It is die-casting aluminum cabinet, thus it is featured by high strength, toughness, precision and it is hard to be deformed. The edge is just 33mm comparing to the 160mm of common cabinet.
3. Fast: There is fast locking device in four corners. It takes only 10 seconds to assemble one cabinet . It is fast and precise assembling.
4. Easy: The die-casting aluminum cabinet is modular designed, each cabinet of the screen can be easily dismantled and assembled(replaced). Best choice for Rental LED display,Rental LED screen,outdoor rental led display,indoor Rental LED display.
5. Low: Excellent heat dissipation design, plus fans for heat dissipation. Low noise, light weight, low cost for transportation and assembling without tools with low cost for assembling.
1. What type of LED screen is used for roadside advertising?
Recommend using P6
2. How can I achieve wireless connection to the LED screen?
Configure wifi send card, mobile phone can control led screen
3. How long is the delivery time for the 100 square LED display?
Production takes 15-25 days
4. How to sew a big screen?
We will provide design drawings and related installation tutorials
5. How to play video after installation
For your convenience, we will provide software-related operation tutorial
