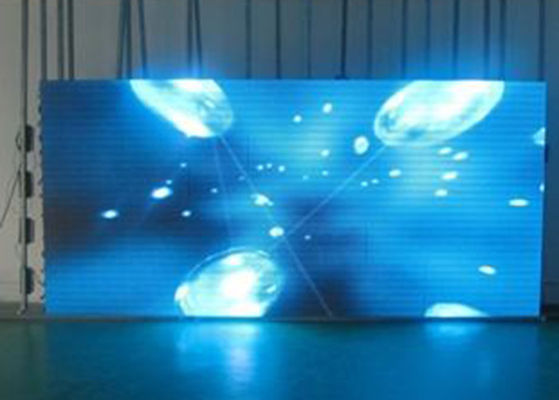

Front Service Pixle 4.81mm Indoor Full Color LED Display With Magnets
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC CCC |
| Model Number: | VG-SUN88865 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | negotiate |
| Packaging Details: | flight case,plywood case,carton |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 4.81mm | Density: | 43,243 Pixel/m2 |
|---|---|---|---|
| Moduel Size: | 250mm×250mm | Cabinet Size: | 500mm×1000mm×90mm |
| Driving Method: | 1/13 Scan | Contrast: | 1000:1 |
| High Light: | 4.81mm led wall display,Magnets p4 indoor led display |
||
Product Description
4.81mm Pixle Front Service Led Display Led Video Wall Panels With Magnets
Product features:
- The use of die-casting aluminum box, product strength, light weight, good heat, suitable for rental use;
- Cabinet size of 500x500mm or 500x1000mm easy to assemble an integer number of LED display area, such as 4 meters long high 3 meters ;
- Rental design of cabinet, with fast lock and flight connectors, in a very short period of time easy to complete the installation and disassembly, can be fixed with steel back support can also use the hanging beam for installation;
- Products can be very high on the refresh, 3840HZ, the quality of the camera is very good.
P4.81 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4.81mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 43,243 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| Cabinet Size(L×W×H)mm | 500mm×1000mm×90mm | ||||||||||
| Module Resolution | 52×52 | ||||||||||
| Cabinet Resolution | 104×208 | ||||||||||
| Driving Method | 1/13 Scan | ||||||||||
| Driving IC | MBI5124 or FM6124 | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:01:00 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜420W | ||||||||||
| Average power: ＜240W | |||||||||||
| Cabinet Weight | 15kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection Level | IP 45 | ||||||||||
Our service:
- We provide 1-3 years of product quality assurance;
- Our products are full time of the aging test before the shipped , and quality control to ensure that our shipping quality;
- Reply in a timely manner, and one-time solution to customer problems, to ensure that customers install and use the product ;
- We can provide our customers with professional steel drawings to install the LED display .
FAQ:
Question 1: what is LED display?
Answer 1: LED full color led display is composed of many LEDs. One pixel is made up of three colors of LEDs, colors of LED can be divided into R.G.B.led display screen can show letters,pictures.video, images and so on;
Question 2: Indoor vs outdoor?
Answer 2: Indoor signs are bright enough to be seen inside a building under commercial lighting, but not bright enough to be seen in direct sunlight. Outdoor signs can be seen in full-on, mid-day sunlight, and are weatherproof to withstand the harsh environmental conditions;
Question 3: What about the lead time?
Answer 3:Order less than 40 square meter led time take 15 working days;

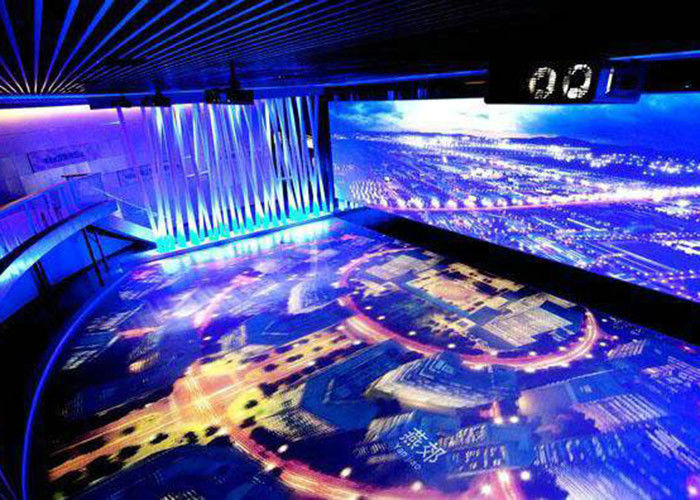

Question 4:Where is it used for?
Answer 4:Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
