SMD Triple Technology P4.8 Indoor Rental LED Display

China SMD Triple Technology P4.8 Indoor Rental LED Display supplier
SMD Triple Technology P4.8 Indoor Rental LED Display supplier SMD Triple Technology P4.8 Indoor Rental LED Display supplier

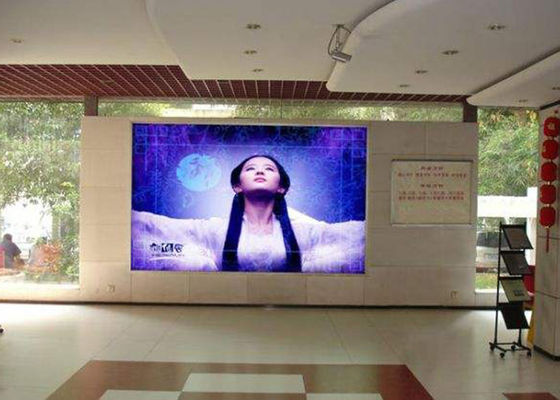

Large Image :  SMD Triple Technology P4.8 Indoor Rental LED Display

Product Details:

Place of Origin: CHINA
Brand Name: VEGOO
Certification: CE ROHS FCC CCC
Model Number: VG-SUN88864

Payment & Shipping Terms:

Minimum Order Quantity: 1 SQM
Price: negotiate
Packaging Details: flight case,plywood case,carton
Delivery Time: 15-30 working days
Payment Terms: T/T
Supply Ability: 3000 sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 4.8mm Density: 43,200 Pixel/m2
Moduel Size: 288mm×288mm Cabinet Size: 576mm×576mm×90mm
Cabinet Resolution: 120×120 Driving IC: MBI5124
High Light:

P4.8 indoor smd led display


SMD indoor fixed led display

Fast Installation Indoor Rental LED Display P4.8 With SMD Triple Technology


P4 led rental wall product Feature:

  • SMD triple technology, the LED display has a wider viewing angle range, looks very soft ;
  • Fast installation and maintenance faster than traditional box 10 times ;
  • The product is very light and easy to install and transport ;
  • Refresh very high and no ghosting, it can reach 3840 HZ, the screen is very clear without jitter ;
  • The black lamps will improve the contrast while maintaining high brightness ;


P4.8 Indoor Full color LED Display Specification



Product Name Specification
Pixel Pitch 4.8mm
Pixel Configuration 1R1G1B/SMD3528 Black lamp
Density 43,200 pixel/m2
Moduel Size(L×W)mm 288mm×288mm
Cabinet Size(L×W×H)mm 576mm×576mm×90mm
Module Resolution 60×60
Cabinet Resolution 120×120
Driving Method 1/15 Scan
Driving IC MBI5124
Brightness 800cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<400W
Average power: <150W
Cabinet Weight 7.5kg
Color Temperature 2000K—9500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 16bit
Grey Processing 1024×1024×1024
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V/5V60Hz
Protection Level IP 45


SMD Triple Technology P4.8 Indoor Rental LED Display 0


Our company:

Shenzhen Vegoo electrinic co.,ltd. was founded in 2016, a workshop covering an area of 9000 square meters and independent living and production places.
Customer satisfaction is our prime objective and our high quality LED video display screen used in more than 140 countries and win a high reputation.
Our company offers user-friendly products that optimize productivity and business efficiency and maintain the highest standards of design and quality.


Why choose us:

  1. Attractive price! If you have any urgent questions, pls contact me without hesitation;
  2. New product exploring ;
  3. Energy saving, low power consumption and long lifespan 10,000 hours (about 10 years);
  4. On time delivery + patient after-sales service;
  5. Engineer guide install and operate online;
