Lightweight 168×168 P2.976 Indoor Full Color LED Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC CCC |
| Model Number: | VG-SUN88860 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | negotiate |
| Packaging Details: | flight case,plywood case,carton |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 2.976mm | Density: | 112,896 Pixel/m2 |
|---|---|---|---|
| Moduel Size: | 250mm×250mm | Cabinet Size: | 500mm×500mm×90mm |
| Cabinet Resolution: | 168×168 | Driving Method: | 1/28 Scan |
| Highlight: | P2.976 indoor led screen rental,168×168 indoor led video wall |
||
Product Description
Hot Sale Professional Lower Price Indoor P2.976 led display screen
Product detail
1.Assembled with Lightweight Modules
The display is assembled with lightweight modules, making it easy to transport and install. No skills and special tools are required to install it.
2.Standard Cabinet Dimensions
The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. easy to install, the quick-lock feature requires no technical skills to install and disassemble.
3.LED Screen

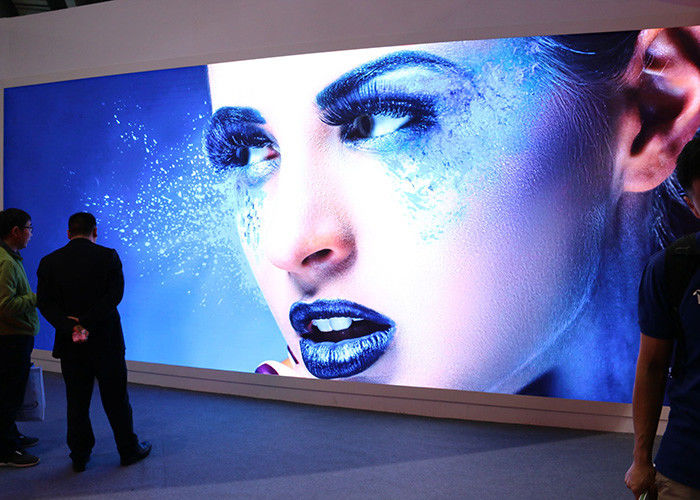

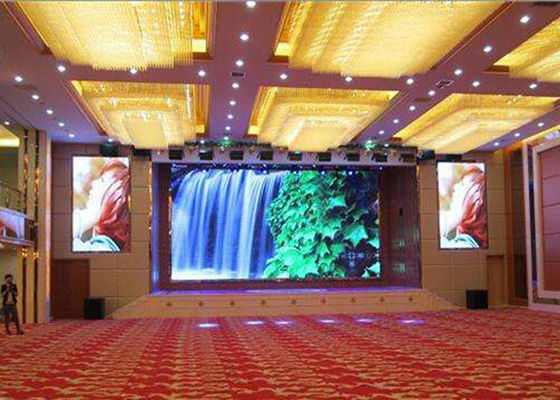

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.
P2.976 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 2.976mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 112,896 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| Module Resolution | 84×84 | ||||||||||
| Cabinet Resolution | 168×168 | ||||||||||
| Driving Method | 1/28 Scan | ||||||||||
| Driving IC | FM6353 | ||||||||||
| Brightness | 800cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜440W | ||||||||||
| Average power: ＜220W | |||||||||||
| Cabinet Weight | 7.5kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >3840Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection Level | IP 45 | ||||||||||
FAQ
Q1: To order a display ,What kind of information do I have to offer you?
A:You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q2:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q3:What about your quality?
A:The quality of our display is excellent. We use the materials of high quality suppliers,strictly control the production process,
and pass the multiple quality inspection to ensure that every product is qualified.
Q4:What about the warranty?
A:1-3 years warranty
