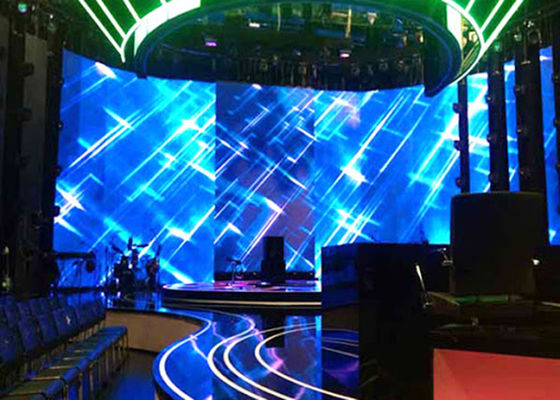

P2.0 Cabinet 512*512*90mm Indoor LED Video Panels
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC CCC |
| Model Number: | VG-SUN88850 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | negotiate |
| Packaging Details: | flight case,plywood case,carton |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 2.0mm | Density: | 250,000 Pixel/m2 |
|---|---|---|---|
| Cabinet Resolutio: | 256×256 | Module Size: | 128mm×128mm |
| Cabinet Size: | 512mm×512mm×90mm | Driving Method: | 1/32 Scan |
| Highlight: | P2.0 led video wall panels,512*512*90mm Led screen display |
||
Product Description
Good Quality Indoor LED Video Panels Screen Walls P2.0 512*512*90mm Cabinet
Product advantages
1.Die-casting aluminium cabinet,high precision,seamless splicing
2.Easy installation and disassemble
3.Save energy
P2.0 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 2.0mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| Density | 250,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 128mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×64 | ||||||||||
| Cabinet Resolution | 256×256 | ||||||||||
| Driving Method | 1/32 Scan | ||||||||||
| Driving IC | MBI5153/ICN2153/FM6353 | ||||||||||
| Brightness | 600CD/㎡ | ||||||||||
| Contrast | 6000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜915W | ||||||||||
| Average power: ＜275W | |||||||||||
| Cabinet Weight | 7.5kg | ||||||||||
| Color Temperature | 6000K—9000K | ||||||||||
| Horizontal Viewing Angle | 120º | ||||||||||
| Vertical Viewing Angle | 120º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >3840Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection | IP 45 | ||||||||||
Service and Guarantees
Services Before-sale:
Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.
Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :
Try the best to meet the reasonable demands by clients Provisional changed .
Keep close touch with the clients during the period if installation .
Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:
Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.
You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
