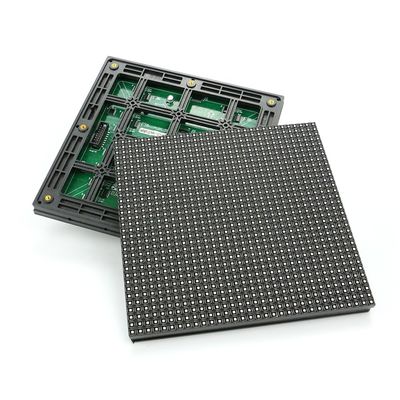

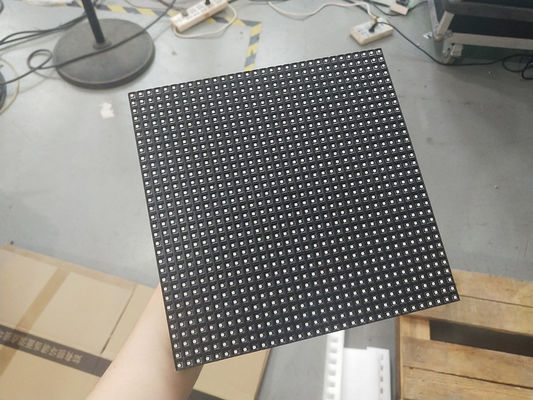

P6 192x192mm SMD3535 LED Advertising Screen Module
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | VG-P6-DH |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Sqm/month |
|
Detail Information |
|||
| Panel Size: | 192x192mm | Density: | 27777dots/sqm |
|---|---|---|---|
| Usage: | Outdoor | Pixel Pitch: | 6mm |
| Highlight: | SMD3535 outdoor display screen,P6 exterior led signs,192x192mm outdoor screen advertising |
||
Product Description
P6 192x192mm SMD3535 Led Module Advertising Screen Outdoor Led Screen P6 Outdoor Display
| P6 Outdoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 6mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| 3 | Density | 27,777 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| 6 | Module Resolution | 32×32 | ||||||||||
| 7 | Cabinet Resolution | 160×160 | ||||||||||
| 8 | Driving Method | 1/8 Scan | ||||||||||
| 9 | Driving IC | FM6124 | ||||||||||
| 10 | Brightness | 6500cd/㎡ | ||||||||||
| 11 | Contrast | 6000 :1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜810W | ||||||||||
| 14 | Average power: ＜405W | |||||||||||
| 15 | Cabinet Weight | 25kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Q1: Are you the manufacturer or trading company? and where is your factory?
A1: We are professional manufacturer devote in producing Led outdoor, Led indoor display, rental display, stadium screen, advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.
Q2:May be we will need some samples, what is the lead time of samples and lead time of order?
A2:We will arrange your sample of the charges within 15 days and arrange your order within 15-20 days after receiving your deposit.
Q3:Which payment method does your company accept?
A:We support T/T or Trade Assurance. For more payment methods, please contact our customer service.
Q4:If have quality problems, how do you solve them?
A:Please provide relevant videos and photos within one month of receipt of the shipment. We will verify it at first. If it is really quality problem, we will work with the engineer to assist you in solving the problem. If we cannot solve it, we will give you a refund or resend you new one for free, but we will not bear the freight.
Want to Know more details about this product
