Ring Shape Crown Soft P2.5 SMD2121 Flexible LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/CCC |
| Model Number: | VG-SUN88838 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiate |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15-30 working days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Product Name: | Flexible LED Screen | Pixel Pitch: | 2.5mm |
|---|---|---|---|
| Pixel Configuration: | SMD2121 | Moduel Size(L×W)mm: | 256×128 |
| Cabinet Size(L×W×H)mm: | 512×512×90 | Driving IC: | MBI5124 Or ICN 2038S |
| Highlight: | SMD2121 soft led screen,P2.5 flexible led curtain |
||
Product Description

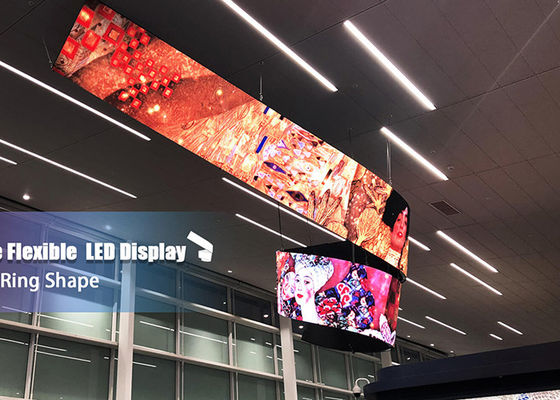

High Definition Soft P2.5 Flexible LED Display Video Screens Ring shape Crown
Our Core Advantage:
- High accurate color consistency,High defination,High refresh rate, High grey scale level
- Easy installation and maintainess.

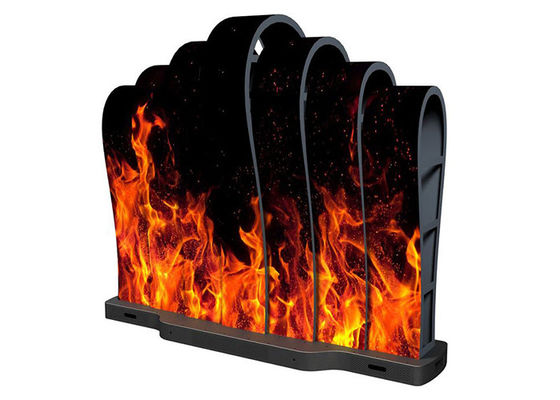

- Soft material,can be design to different shape.just express your imagination.
1. Bendable
Can be installed at any uneven or irregular locations.
2. Ultra-thin
Special materials and advanced technology.
3. Seamless Splicing
Die-casting aluminum make the splicing seamless
4. Low power consumption to save energy
P2.5 Indoor Full color LED Display Specification:
| Item | Parameter |
| Model Number | VG-P2.5-32S |
| Module size | 320mm*160mm |
| Pixel pitch | 2.5mm |
| Pixels Density | 160000dots/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD 3IN1 -2121 |
| Pixel resolution | 128dots(W)*64 dots(H) |
| Max Power Consumption(module) | 25W |
| Module thickness | 10mm |
| Module Weight | 0.2KG |
| Drive type | Constant drive |
| Scan mode | 1/32scan |
| Port type | HUB75 |
| Brightness of white balance | ≥1000cd/㎡ |
| Bending Radian | Center & Diagonal Bending Radians≤120° |
| Bending Times | <1000 times |
| Best viewing distance | 2M～10M |
| Best viewing angle | 140°(W) 120°(H) |
| Environment Temperature | storage:-35℃～+80℃ working:-20℃～+50℃ |
| Relative humidity | 10%-95%RH |
| Working voltage | AC220V±10% |
| Average Power consumption | <250W/㎡ |
| Max.Power consumption | <500W/㎡ |
| Current | <15mA(single LED) |
| CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 |
| Control method | Synchronization |
| Driving device | Constant drive IC FM6124 |
| Refresh frequency | ≥1920Hz |
| Grey scale/colors | 65536gray level/16.7M colors |
| MTBF | 5000hours |
| Power switch | Automatic switch |
| Display Mode | ≥1024*768 |

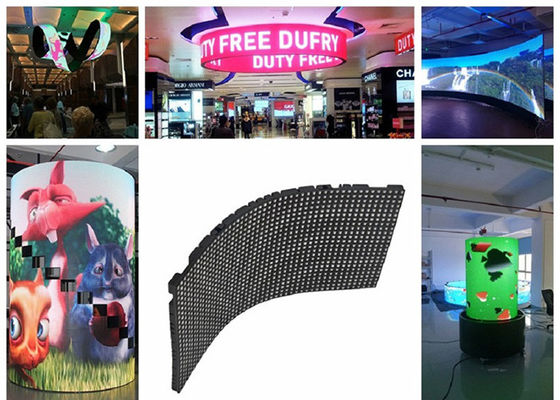

- Application :
- Stage background;
- Shopping Mall
- Use for stage shows, concerts etc.;
- Indoor & outdoor decoration;
- For rental & fixed projects.
- Why choose us ?
- OEM & ODM available
- 100% QC inspection before shipping
- Competitive price
- Waterproof
- 24 hours online service.
- Best after-sale service
FAQ
Q1: What is your lead time?
A: If we have raw material in stock,the lead time will be around 15 working days, the other would be 20-30 working days
Q2: What is your payment method?
A: TT in advance,it can be negotiate
Q3: What is your shipping and packing way?
A: Plywood box and flight case is optional. We advise to use plywood box if you order fixed LED display and flight case for rental case to move easily and cycle use.
Q4: Can I placed a sample order before mass production?
A: Sample orders is accepted
