Commercial Transparent HD SMD P3.91 LED Curtain Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE |
| Model Number: | VG-T-DH |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1sqm |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Pixel Pitch: | 3.91mm | LED Configuration: | SMD2121 |
|---|---|---|---|
| Module Size: | 250X62.48mm | Cabinet Size: | 500X500X93mm 500X1000X93mm |
| Module Resolution: | 64X8dot | Brightness: | 800~1000CD/m2 |
| Highlight: | smd led pixel curtain,P3.91 transparent led curtain |
||
Product Description
Outdoor P3.91 HD commerical advertising screen transparent SMD led Curtain display for Window advertising

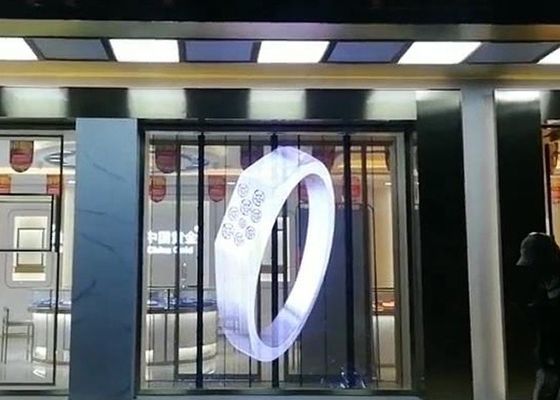

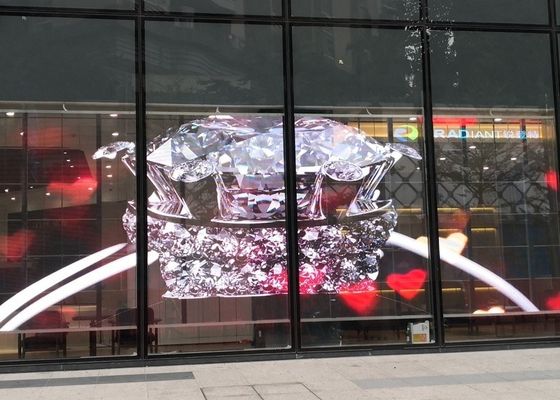

1.Great transparency from 60%-92%, it is installed close to the glass of shop window or large glass building wall. Looks like a totally transparent led video wall from far aways when more than 10m.
2.Different Application with different deisgn:
2.1 Fixed Installation:
A.Light design with 9kg/m2, strong aluminum material for fixed installation in the building or in shopping mall;
B.2500-5500CD different brightness as option accoring to the site environment;
C.Easy maintenance with front service.
D.Hanging instllation to save cost for the steel structure.
2.4 Stage Rental for events
A.Light design with 8kg/m2, die- casting aluminum material to ensure the precise for location;
B.2500-5500CD different brightness as option accoring to the site environment;
C.Easy maintenance with front service.
D.Hanging instllation and quick lock on the cabinets
E.Standard led cabinet size 1000x500mm, 500x1000mm, 1000x1000mm
2.5 All-in-ONE led for adverts
A.Light design with 10kg/pc;
B.Iphone design with high level material;
C.Hang on the ceiling, no need any extra structure for installation;
D.Intelligent control by WIFI/4G with smart cellphone, support for Android and IOS system.
| Part Number | G-3.9 | G-5.2 | G-5.2C | G10 |
| Pixel Pitch (H/V) | 3.9/7.8mm | 5.2/10.4mm | 5.2/10.4mm | 10.416mm |
| LED Configuration | SMD2121 | SMD 3528 | SMD 3030 | SMD 3528 |
| Pixel Density | 32768dot/m2 | 18432dot/m2 | 18432dot/m2 | 9216dot/m2 |
| Transparency | 48% | 50% | 50% | 50% |
| Module Size | 250X62.48mm | 250X83.36mm | 250X83.36mm | 250X41.66mm |
| Module Resolution | 64X8dot | 48X8dot | 48X8dot | 24X4dot |
| Cabinet Size | 500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
500X500X93mm 500X1000X93mm |
| Cabinet Resolution | 128X64dot 128X128dot |
96X48dot 96X96dot |
96X48dot 96X96dot |
48X48dot 48X96dot |
| Cabinet Weight | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel | 5kg /10kg/Panel |
| IP Rating ( front/back) | IP30 | IP30 | IP30 | IP30 |
| Brightness | 800~1000CD/m2 | 900~1200CD/m2 | 3000~3200CD/m2 | 900~1200CD/m2 |
| Viewing Angle (H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° |
| Viewing Distance | 4m | 10m | 10m | 10m |
| Gray Scale | 14bit | 14bit | 14bit | 14bit |
| Max.Power Consumption | 400W/m² | 400W/m² | 600W/m² | 400W/m² |
| Ave.Power Consumption | 150W/m² | 150W/m² | 240W/m² | 150W/m² |
| Refresh Rate | 1920Hz | 1920Hz | 1920Hz | 960Hz |
| Environment | INDOOR | INDOOR | INDOOR | INDOOR |
| Control Mode | Synchronous display with control PC by DVI | |||
| Support Input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | |||
| Operation Power | AC110~ 240V, 50/60Hz | |||
| Operating Temperature | 0°C~40°C(work) , - 20°C~60°C(store) | |||
| Operating Humidity | 35%~85% (work) , 10%~90% (store) | |||
| Operating Life | ≥100,000hours | |||
| Certificate | CE |
Cabinet details
Die casting aluminum cabinet: 1000x500mm
1. Are you a factory or trading company?
100% factory. We are the largest LED stage light manufacture in Guangzhou China. Have more than 10 years of manufacturing experience. OEM & ODM order is warmly welcomed
2.Why purchase from Sunfrom?
Stable and reliable quality, efficient and professional customer service, competitive factory price, fast delivery time.
3. What's your delivery time?
10-15 days according to order quantity and season.
4: Any certificate?
A: Our products have Patent no,CE and ROHS certification, please contact us if you need other certifications.
6: What is the payment term?
A: We accept T/T, Western Union, PayPal, Credit card etc.
7: How long is the warranty?
A: Normal warranty 2year, any special requests please contact us.
8: How to place an order?
A: Kindly send us your inquiry or contact us online. Our sales representative online 24 hours.
