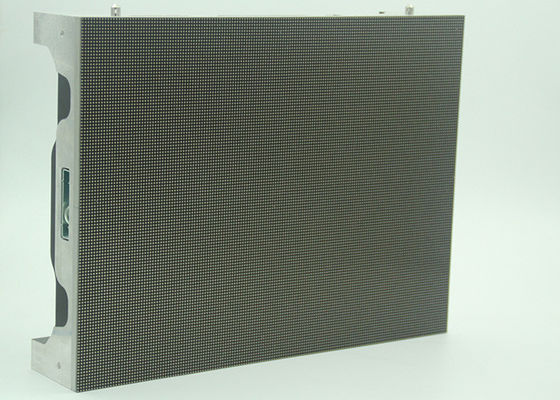

Wide Viewing Angle P1.25 P1.56 Indoor Full Color LED Display
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-SUN88832 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | negotiate |
| Packaging Details: | flight case/plywood box/carton |
| Delivery Time: | 8-25 working day |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Material: | Aluminum Or Iron | Product Name: | Indoor Small Pixel Led Display |
|---|---|---|---|
| Color: | Full Color | Led Lamp: | Nationstar Lamp |
| Driving IC: | Customized | Function: | Reflect The Failure(optional) |
| High Light: | P1.25 led advertising board,P1.56 screen led display |
||
Product Description
High Resolution P1.25 P1.56 Indoor LED Video Screens Small Pixel Led Display Wide Viewing Angle
Our feature:
1.No full-screen display of patchwork fine point,to ensure accurate display of digital signals graphic and text information.
2.Seamless splicing,easy installation,high definition,low consumption.
Small Pixel Pitch Indoor Full color LED Display Specification
| Product Name | P1.25 | P1.56 | ||||||||||
| Pixel Pitch | 1.25 mm | 1.56mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD1010 Black lamp | 1R1G1B/SMD1010 Black lamp | ||||||||||
| Density | 640,000 pixel/m2 | 409,600 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 150mm×168.75mm×10mm | 150mm×168.75mm×10mm | ||||||||||

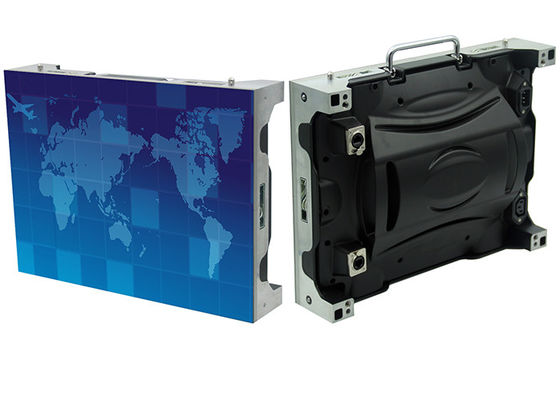

| Cabinet Size(L×W×H)mm | 600mm×337.5mm×38mm | 600mm×337.5mm×38mm | ||||||||||
| Module Resolution | 120×135 | 98×108 | ||||||||||
| Cabinet Resolution | 480×270 | 384×216 | ||||||||||
| Driving Method | 1/45 Scan | 1/54 Scan | ||||||||||
| Driving IC | MBI5153 | MBI5153/ICN 2153/FM6353 | ||||||||||
| Brightness | 200-500CD/㎡ | 200-500/㎡ | ||||||||||
| Contrast | 6000 :1 | 6000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜800W | Max Power:＜800W | ||||||||||
| Average power: ＜100-300W | Average power: ＜100-300W | |||||||||||
| Cabinet Weight | 5kg | 5kg | ||||||||||
| Color Temperature | 2000K—9500K | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140 | 140º | ||||||||||
| Vertical Viewing Angle | 140º | 140º | ||||||||||
| Signal Processing | 16bit | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | 65 Hz | ||||||||||
| Refresh Rate | >3840Hz | >3840Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -10 - 60 ℃ | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -10℃ to 60℃; humidity Rh10% to 90% | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsXP/7/8/10 | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110V-240V/ 50-60Hz | AC 110-240V/5V60Hz | ||||||||||
| Protection Level | IP 45 | IP45 | ||||||||||
FAQ
Q1: How can I place an order?
A: Please provide the details of your requirements (installation site, size, viewing angle) as clear as possible, then we can send you the solution at the first time. For detail, please contact us with Skype/whatsapp /phone.
Q2: What is the lead time for order?
A: Normally 20 days and the exact time depends on your order quantity, if we have in stock, it can be delivered within 7 days.
Q3:What is our warranty?
Our warranty is based on different type led screen, about 1-3years.We will free repair within warrenty period,only charge material cost beyond the warrenty.
Q4:How to be our distributor?
To be our distributor, We can share our profit together with you in every year.
