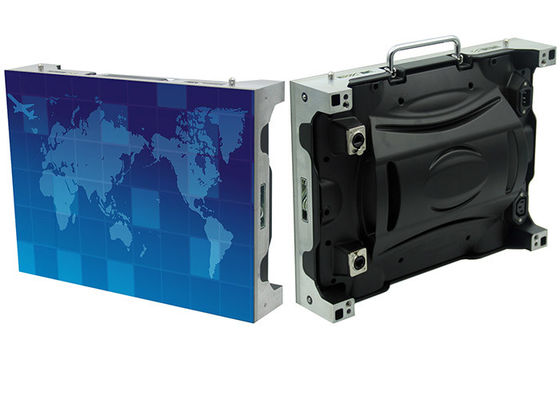

High Refresh Rate Customized HD Indoor Rental Fixed LED Display Video Wall Screens Ultrathin Full Color
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-SUN88811 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiate |
| Packaging Details: | flight case,polywolden case and carton 6 in 1 case customed |
| Delivery Time: | 8-15 working day |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm per month |
|
Detail Information |
|||
| Color: | Full Color | Material: | Die-casting Aluminium |
|---|---|---|---|
| Moduel Size(L×W)mm: | 320mm×160mm | Driving IC: | MBI5124 Or FM6124 |
| Brightness: | 800CD/㎡ | Cabinet Weight: | 25kg / 30kg |
| Highlight: | full color led display board,indoor full color led display screen |
||
Product Description
High Refresh Rate Light Weight Customized HD Indoor Rental Fixed LED Display Video Wall Screens Ultrathin full color
P0.9~P10 pixel pitch can be optional
Our advantages:
1.Seamless splicing,the seams between the panels is not visible.
2.No any glare or water wave when the display is working.
3.Customized design,you can choose the LED type,drive IC and material by yourself.what you want,what we will do!
4.Rental LED cabinet is easy and convenient to install,low labour cost and operating cost for installation,easy to remove.
5.Low-Consumption,save energy and good heat dissipation.
6.Good show quality as the color uniformity and color reducibility.
| P5 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 5mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 40,000 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 640mm×640mm or 960mm×960mm×100mm | ||||||||||
| 6 | Module Resolution | 64×32 | ||||||||||
| 7 | Cabinet Resolution | 128×128 or 192×192 | ||||||||||
| 8 | Driving Method | 1/16 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or FM6124 | ||||||||||
| 10 | Brightness | 800CD/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜545W | ||||||||||
| 14 | Average power: ＜273W | |||||||||||
| 15 | Cabinet Weight | 25kg / 30kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection Level | IP 45 | ||||||||||
Our service:
Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :
Try the best to meet the reasonable demands by clients provisional changed .
Keep close touch with the clients during the period of installation .
Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:
General products have one year guarantee, and wholelife maintenance for free charges . we just charge material cost when products are out off guarantee peried.
You can download and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
Check the quality of appliance , do maintenance job and ask good suggestions from clients on a regular time schedule .
Customer Service
1) Guarantee Time: Within one year after delivery from factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or other way
4) Response time for maintenance :
Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
