P4.81-P10 Outdoor Full Color LED Display / Video Wall Screens Waterproof Ip65
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-SUN8889 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | negotiable |
| Packaging Details: | poly wooden box, flght case , carton |
| Delivery Time: | 20working days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 sqm/month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Warranty: | 3years | Material: | Aluminum Or Iron |
| LED Lamp: | Nationalstar | Control System: | Nova |
| Highlight: | outdoor digital signage displays,outdoor full color led screen |
||
Product Description

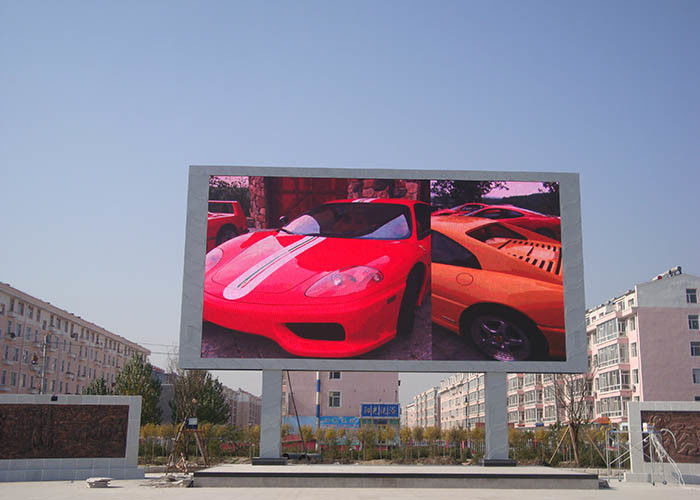

High Brightness P4.81-P10 Outdoor LED Display Full Color Video Wall Screens Waterproof Ip65
Our advantages:
1.Supply custom service,you can have the best product as your thought.
2.Good quality:High brightness,High definition,High refresh rate,High gray level,Good color uniformity,full color,the perfect view feast.
3.After-sales service:you will get the quickly reply and resolution once you have any question.
| Pixel Pitch | 6mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3535 | ||||||||||
| Density | 27,777 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 32×32 | ||||||||||
| Cabinet Resolution | 160×160 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | FM6124 | ||||||||||
| Brightness | 6500cd/㎡ | ||||||||||
| Contrast | 6000 :1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜810W | ||||||||||
| Average power: ＜405W | |||||||||||
| Cabinet Weight | 25kg | ||||||||||
| Color Temperature | 2000K—9500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 16bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V/5V60Hz | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
FAQ
1. How long could i receive the inquiry reply ?
A: You will get a reply within 12 hours.
2.How should I place an order for led display?
Just contact us and show your needs,we will do specific plan for you and start production after deposit.
3.When will I received the goods ?
Normally 10-20days after deposit,some customed product need 30days more.
4.How about the after-sales service ?
We have a professional team which is charged 24-hour online service dealing with your feedback to help you solving problems.
