Outdoor Full Color Led Display P 4.81 Right Angle , Cubic Column Construction Application
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-CM |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 0.2025 CBM |
| Delivery Time: | 8-15 working day |
| Payment Terms: | T/T |
| Supply Ability: | 3000SQM/MONTH |
|
Detail Information |
|||
| Cabinet: | Aluminum Die Casting | Horizontal Viewing Angle: | 140 |
|---|---|---|---|
| Vertical Viewing Angle: | 140 | Signal Processing Grey Processing Control Distance Frame Frequency Refresh Rate Contr: | 10 Or 14 Bit |
| Grey Processing: | 1024×1024×1024 16834×16834×16834 | Control Distance: | Cable100m，Multimode500m，Single Mode 2km |
| Frame Frequency: | 65Hz | Refresh Rate: | >1920Hz |
| Control Mode: | Synchronous/Asynchronous | Pixels: | 4.81 |
| Usage: | Outdoor | Tube Chip Color: | Full Color |
| Screen Dimension: | Customized | Warranty: | 3 Years |
| Module Size: | 250mm * 250mm | Cabinet Size: | 500mm * 500mm |
| Highlight: | outdoor advertising led display screen,outdoor full color led screen |
||
Product Description
Out door HD LED Display P4.81 Module 250mm x 250mm Pixel Density 43200

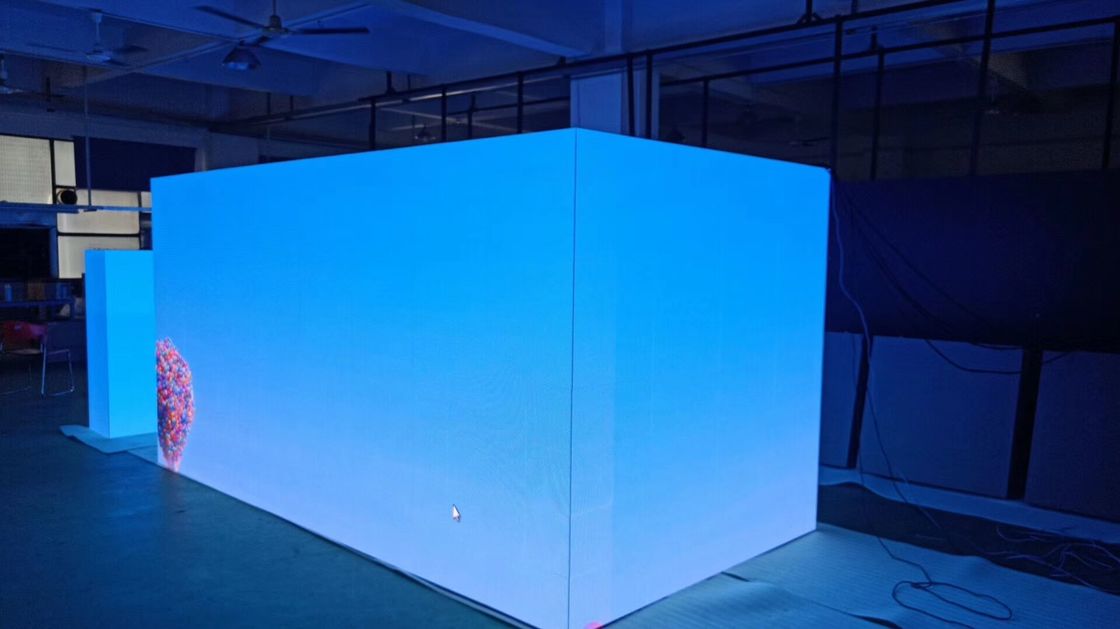

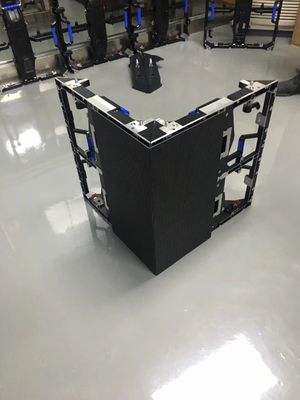

· Right angle is completely seamless connected
· High pixel density, clear and sharp picture
· High contrast, high resolution

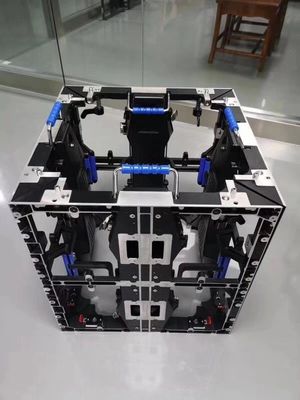

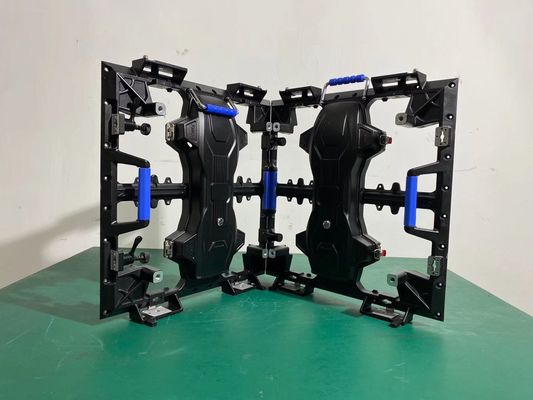

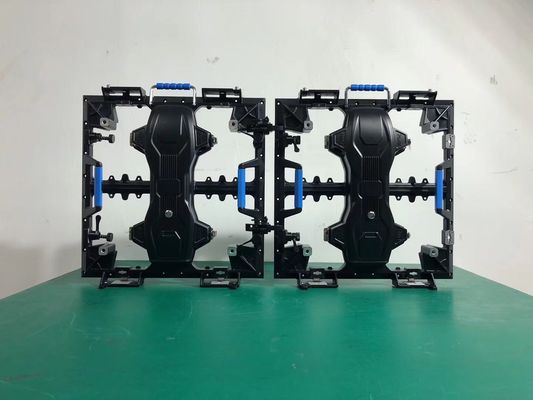

· Aluminum structure

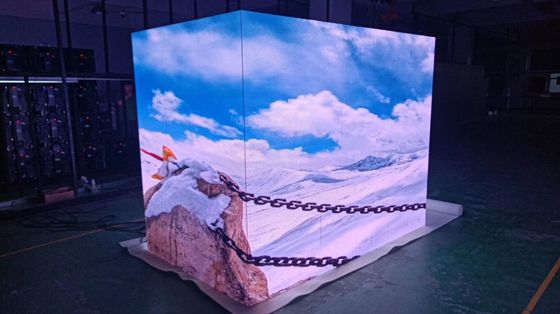

· 360°Full perspective broadcast, cube display, highlight personality
· Customized products, support floor standing install, suspended install, embedded installation.
· flight case package, protection perfectly
Parameters
| Cabinet: | Aluminum Die Casting | Horizontal Viewing Angle: | 140 |
|---|---|---|---|
| Vertical Viewing Angle: | 140 | Signal Processing Grey Processing Control Distance Frame Frequency Refresh Rate Contr: | 10 Or 14 Bit |
| Grey Processing: | 1024×1024×1024 16834×16834×16834 | Control Distance: | Cable100m,Multimode500m,Single Mode 2km |
| Frame Frequency: | 65Hz | Refresh Rate: | >3840Hz |
| Control Mode: | Synchronous/Asynchronous |
| P4.81 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 4.81mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| 3 | Density | 43,243 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 500mm×500mm×90mm | ||||||||||
| 6 | Module Resolution | 52×52 | ||||||||||
| 7 | Cabinet Resolution | 104×104 | ||||||||||
| 8 | Driving Method | 1/13 Scan | ||||||||||
| 9 | Driving IC | MBI5124 or FM6124 | ||||||||||
| 10 | Brightness | 1000cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜420W | ||||||||||
| 14 | Average power: ＜240W | |||||||||||
| 15 | Cabinet Weight | 7.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 140º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 16bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >1920Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 110-220V/5V60Hz | ||||||||||
| 36 | Protection Level | IP 45 | ||||||||||
