Customized HD Led Display Module size 320 mm X 128 mm Pixel Density 160000/sqm black led
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | VEGOO |
| Certification: | CE ROHS FCC |
| Model Number: | VG-Cp2.5mm |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SQM |
|---|---|
| Price: | USD 500 per PC |
| Packaging Details: | 0.2025 CBM |
| Delivery Time: | 8-15 working day |
| Payment Terms: | T/T |
| Supply Ability: | 3000SQM/MONTH |
|
Detail Information |
|||
| Cabinet: | Aluminum Die Casting | Signal Processing Grey Processing Control Distance Frame Frequency Refresh Rate Contr: | 10 Or 14 Bit |
|---|---|---|---|
| Control Distance: | Cable100m，Multimode500m，Single Mode 2km | Frame Frequency: | 65Hz |
| Refresh Rate: | >3840Hz | Control Mode: | Synchronous/Asynchronous |
| Pixels: | 2.5mm | Display Function: | Video,Graphics,Animation |
| Module Size: | 256x128mm,320*160mm | Power Supply: | 50~60Hz |
| Highlight: | high definition led display,commercial advertising led display |
||
Product Description

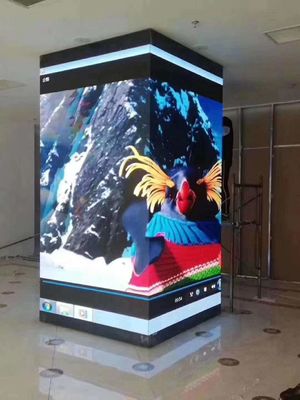

Cube HD LED Display P2.5 Module 320mm x 160mm Pixel Density 160000
| Pixel Pitch | 2.5mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 160,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 160mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 480mm×480mm×90mm | ||||||||||
| Module Resolution | 64×64 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/32 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜1200W | ||||||||||
| Average power: ＜480W | |||||||||||
| Module Weight | 0.5kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
· Four-sided cube is completely seamless connected
· High pixel density, clear and sharp picture
· High contrast, high resolution
· Aluminum structure
· 360°Full perspective broadcast, cube display, highlight personality
· Customized products, support floor standing install, suspended install, embedded installation.
· flight case package, protection perfectly
