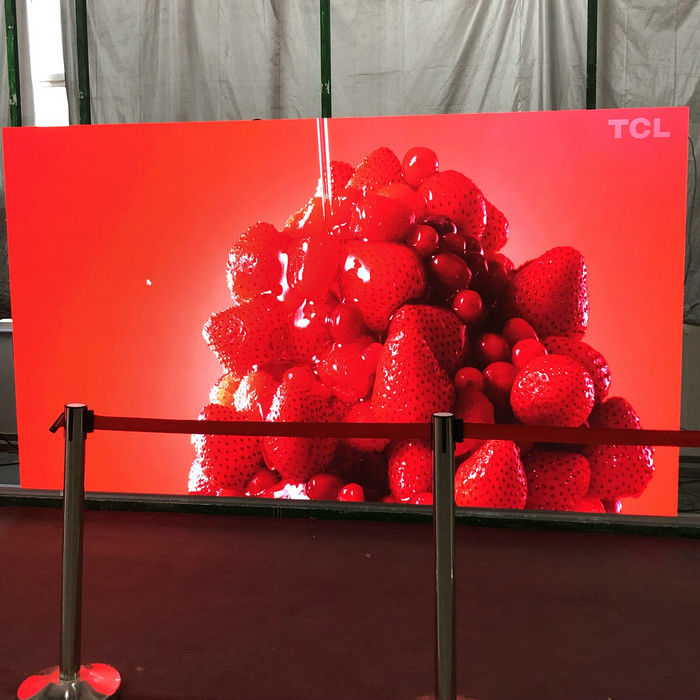

Horizontal Rich Color LED Screen Indoor , Fixed RGB Indoor LED Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD 3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3000 Sq.m / month |
|
Detail Information |
|||
| Product Name: | LED Screen Indoor | Type: | Horizontal |
|---|---|---|---|
| Pixel Pitch: | 3mm | Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp |
| Density: | 111,111pixel/m2 | Moduel Size(L×W)mm: | 192mm×192mm |
| Brightness: | 800cd/㎡ | Other Name: | Indoor LED Video Wall |
| High Light: | full color led display board,indoor advertising led display |
||
Product Description
Horizontal Rich Color LED Screen Indoor , Fixed RGB Indoor LED Video Wall
LED Screen Indoor Description:
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under direct sunlight.
2) Energy saving:low electric current,high-bright lamps
3) The brightness can be adjustable to meet the need of changing environment
4) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5) Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6) Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.
LED Screen Indoor Specification
| Product Name | Horizontal Rich Color LED Screen Indoor , Fixed RGB Indoor LED Video Wall | ||||||||||
| Pixel Pitch | 3mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 111,111pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| Module Resolution | 64×64 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/32 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 800cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜800W | ||||||||||
| Average power: ＜200W | |||||||||||
| Module Weight | 0.25kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
LED Screen Indoor Applications:
Stage Background
Airport Station
Television Relay
LED Screen Indoor Details
Our service
1. Your inquiry related to our products or price will be replied in 2hrs
2. OEM customized products
3. 2 years warranty
4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
5.Free technician training..
6.Top quality+Reasonable price+Responsible After Service=Successful & Win
