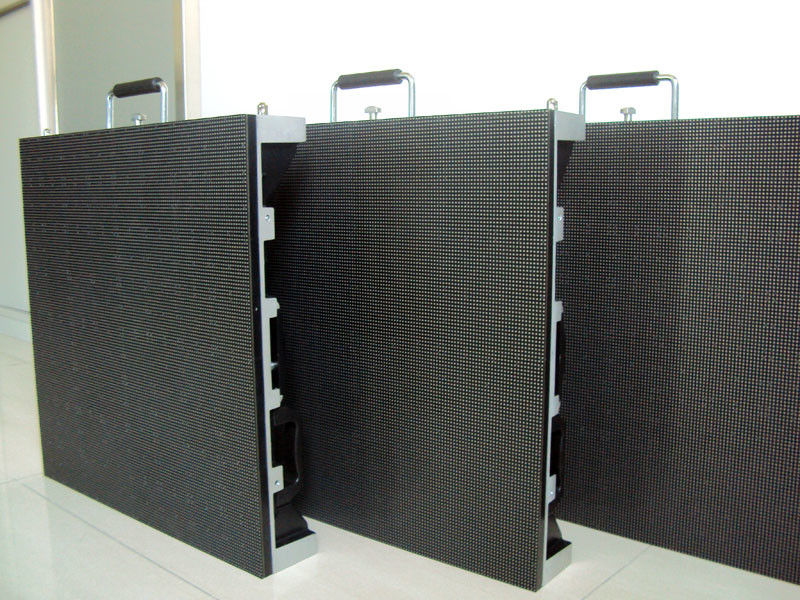

Mask Assembled RGB Outdoor Full Color LED Display Audio Video Advertising 160x160mm SMD2121
Product Details:
| Place of Origin: | Made in China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC |
| Model Number: | VG-P3-160w/h-out2 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Price: | 1600~2500usd |
| Packaging Details: | Strong light flight case,plywood case |
| Delivery Time: | 10-25 days |
| Supply Ability: | 5000sq.m/month |
|
Detail Information |
|||
| Discription: | P3 Outdoor SMD LED Screen | Pixel Pitch: | 3mm |
|---|---|---|---|
| Pixel Configuration: | RGB/SMD2121 | Density: | 111,111pixel/m2 |
| Moduel Size(L×W)mm: | 160x160mm | Cabinet Size(L×W×H)mm: | 640mm,960mm,customized |
| Brightness: | 4500~8000cd/㎡ Adjustable | Contrast: | 7000:1 |
| Color: | RGB | Function: | High Definition |
| Application: | Audio Video Display | Scan: | 1/13 |
| Function1: | High Refresh Rate | Function2: | High Frame Rate |
| Highlight: | outdoor advertising led display screen,outdoor digital signage displays |
||
Product Description
LED display P3 outdoor mask assembled RGB audio video advertising 160x160mm SMD2121
Description
| Type | G series G3 | LED type | SMD1921 | |||
|
(1)LED chips |
||||||
| NO. | Color |
Iv(mcd) |
Rd(nm) |
|||
| 1 | R(test condition:15mA,2.0V) | 350mcd | 622nm | |||
| 2 | G(test condition:8mA,3.0V) | 620mcd | 530nm | |||
| 3 | B(test condition:5mA,3.0V) | 95mcd | 472nm | |||
| 1 | LED type | FM-B1921RGBA-HG | |
| 2 | pitch | 3mm | |
| 3 | configuration | 1R1G1B | |
|
(2)module |
|||
| 1 | module resolution(W×H) | 53dots×53dots | |
| 2 | module dimension(W×H×D) | 160mm×160mm×28mm | |
| 3 | mask | Flame retardant PVC | |
|
(3)control system |
||
| 1 | the processing color depth | R,G,B≥16bit |
| 2 | driving method | constant current driving 1/13 scan |
| 3 | frame rate | 60Hz (3D high refresh rate :120Hz) |
| 4 | refresh rate | Regular refresh rate:≤900Hz high refresh rate:≤1920Hz |
| 5 | panel color Temp | 2000K～9500K(adjustable) |
| 6 | brightness adjustment | manually/Auto/programme control |
| 7 | pixel correction | point by point correction |
| 8 | control method | synchronism |
| 9 | software interface | Windows XP /7/8/10 |
| 10 | input signal | HDMI,DVI |
Waterproof
Front IP65,RearIP54
about us
Audio visual factory with 12 years experience of manufacturing and exporting all over the world.
Skilled at rental LED display seamless installation and mainly expanded small pixel pitch indoor LED displays.
Certificates
RoHS/CCC/CE/EMC/ISO /FCC certifications.
Application
1. Rental display;
2. Advertising LED display;
3. LED TV;
4. Full color anomalous display etc.
● HOTEL LOBBY ● EXHIBITION CENTER
● SHOPPING MALL ● RESTAURANT
● CINEMA ● FUNCTIONAL ADVERTISING
● STORE OUTLET ●PROMOTION ACTIVITY
● EVENTS ● REAL ESTATE BUSINESS
