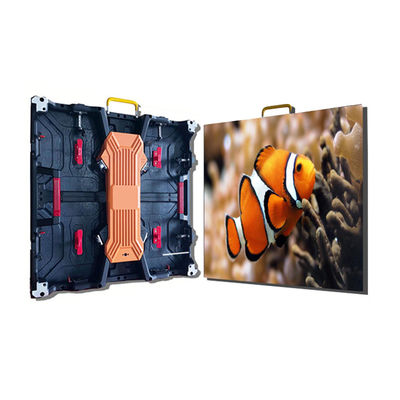

RGB Large Outdoor LED Display Screens / Electric Outdoor Digital Display Board
Product Details:
| Place of Origin: | Made in China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC |
| Model Number: | VG-P3-160w/h-out1 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Strong flight case,plywood case |
| Delivery Time: | 10-25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000sq.m/month |
|
Detail Information |
|||
| Name: | Outdoor LED Display Screens | Color: | RGB Full Color |
|---|---|---|---|
| Pixel Pitch: | 3mm | Pixel Configuration: | 1R1G1B/SMD2121 Lamp |
| Moduel Size(L×W)mm: | 160x160mm | Other Name: | Outdoor Digital Display Board |
| Contrast: | 7000:1 | Function2: | High Frame Frequency |
| Highlight: | outdoor advertising led display screen,outdoor full color led screen |
||
Product Description
RGB Large Outdoor LED Display Screens / Electric Outdoor Digital Display Board
Outdoor LED Display Screens Application
Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
Outdoor LED Display Screens Specifications sheet
| Type | G series G3 | LED type | SMD1921 | |||
| NO. | Color |
Iv(mcd) |
Rd(nm) |
|||
| 1 | R(test condition:15mA,2.0V) | 350mcd | 622nm | |||
| 2 | G(test condition:8mA,3.0V) | 620mcd | 530nm | |||
| 3 | B(test condition:5mA,3.0V) | 95mcd | 472nm | |||
| 1 | LED type | FM-B1921RGBA-HG | |
| 2 | Pixel pitch | 3mm | |
| 3 | Pixel configuration | 1R1G1B | |
|
(2)module |
|||

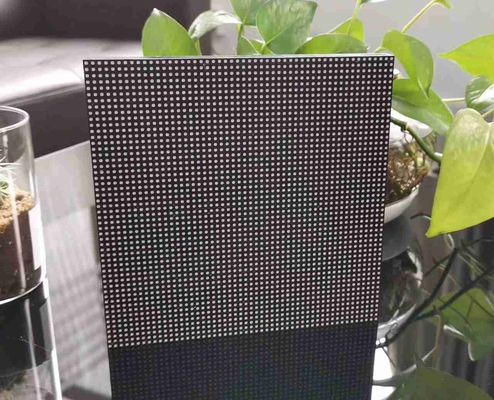

| 1 | module resolution(W×H) | 53dots×53dots | |
| 2 | module dimension(W×H×D) | 160mm×160mm×28mm | |
| 3 | mask | Flame retardant PVC | |
|
(3)control system |
||
| 1 | the processing color depth | R,G,B≥16bit |
| 2 | driving method | constant current driving 1/13 scan |
| 3 | frame rate | 60Hz (3D high refresh rate :120Hz) |
| 4 | refresh rate | Regular refresh rate:≤900Hz high refresh rate:≤1920Hz |
| 5 | panel color Temp | 2000K～9500K(adjustable) |
| 6 | brightness adjustment | manually/Auto/programme control |
| 7 | pixel correction | point by point correction |
| 8 | control method | synchronism |
| 9 | software interface | Windows XP /7/8/10 |
| 10 | input signal | HDMI,DVI |
Protection degree
Front IP65,RearIP54
about us
Audio visual manufacturer, WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series.
Certificates
RoHS/CCC/CE/EMC/ISO /FCC certifications.
