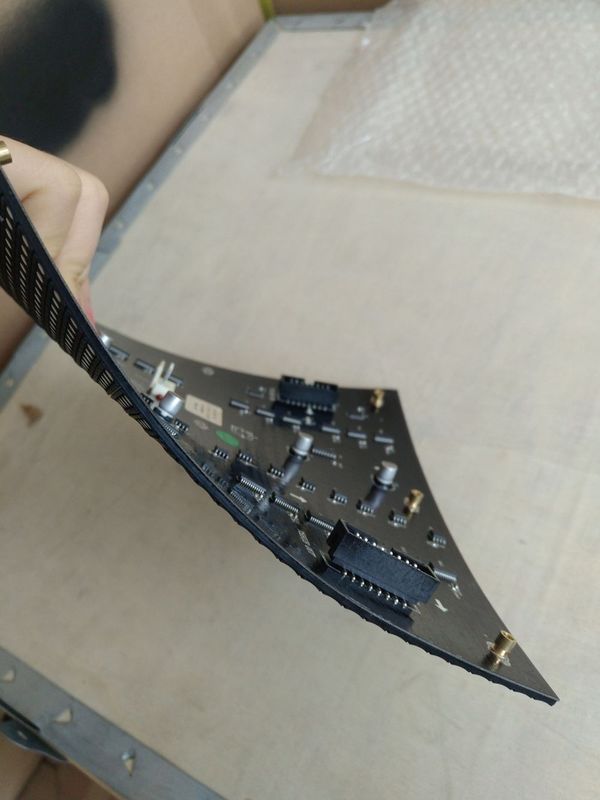

Indoor Flexible Led Display P4 62500 Pixel / M2 Density For SMD Full Color 2121 Black Lamp
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 12-15 days |
|
Detail Information |
|||
| Product Name: | Flexible LED Screen | Pixel Pitch: | 4mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp | Density: | 62,500 Pixel/m2 |
| Cabinet Size(L×W×H)mm: | 512mm×512mm×90mm | Module Resolution: | 64×32 |
| Driving Method: | 1/16 Scan | Brightness: | 1000cd/㎡ |
| Contrast: | 1000:1 | ||
| High Light: | flexible led video wall,flexible led panel |
||
Product Description
LED display visual Manufacturers for P4 indoor SMD full color 2121 black lamp
Description:
The P4 SMD Indoor P4 SMD Custom LED Display use high heat-resistant and waterproof glue on the surface, 2 years warranty on the power supply, good quality cables to ensure the stable performance.
Good cooling system with automatic temperature control fan, which only works when the temperature is high
High brightness LEDs with high luminous efficiency and low brightness decay.
Easy and fast maintenance.
High refresh rate, seamless splice, good uniformity, HD video with vivid picture.
Conformal coatings have excellent corrosive property towards to electronics and circuit board
Brand new mask design makes the light from LEDs almost non-reflection.
P4 Indoor Full color LED Display Specification:
| Product Name | Specification | ||||||||||
| Pixel Pitch | 4mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 62,500 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
| Cabinet Size(L×W×H)mm | 512mm×512mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 1000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜610W | ||||||||||
| Average power: ＜240W | |||||||||||
| Module Weight | 0.2kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110–220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Flexible Full Color LED Display Competitive advantages
1. Strong supply ability: 6000㎡ per month LED display production and standard products in stock for quick delivery;
2. Stable quality: Professionally supplied LED screen to over 100 countries and installed thousands projects in 11 years;
3. Innovation: According to customer's demands and save more time and cost on the installation, maintenance, and make sure more steady quality and easy operation.
4. Reasonable price: Profit back to customer for long term win-win cooperation;
5. Trusted service: Local cooperation distributors in Russia,Indonesia,India and Spain; 24/7 LED experts online support; LED engineer on-site support;
Services Before-sale:
Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.
Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :
Try the best to meet the reasonable demands by clients Provisional changed .
Keep close touch with the clients during the period if installation .
Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:
Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.
You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
● HOTEL LOBBY ● EXHIBITION CENTER
● SHOPPING MALL ● RESTAURANT
● CINEMA ● FUNCTIONAL ADVERTISING
● STORE OUTLET ●PROMOTION ACTIVITY
● EVENTS ● REAL ESTATE BUSINESS
