1R1G1B Full Color Outdoor Advertising Led Display Lamppost Advertising High Definition
Product Details:
| Place of Origin: | Made in China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC |
| Model Number: | VG-P3-160-out1 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Price: | 2400~2600usd |
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Discription: | P3 Outdoor SMD LED Screen | Pixel Pitch: | 3mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2121 | Density: | 111,111pixel/m2 |
| Moduel Size(L×W)mm: | 160x160mm | Cabinet Size(L×W×H)mm: | 640x640mm |
| Brightness: | 7000cd/㎡ | Contrast: | 7000:1 |
| Color: | Full Color Lamppost Video | Function: | High Definition Adverting Display |
| Application: | LED Display Wall Screens | Scan: | 1/13 |
| Highlight: | outdoor digital signage displays,outdoor full color led screen |
||
Product Description

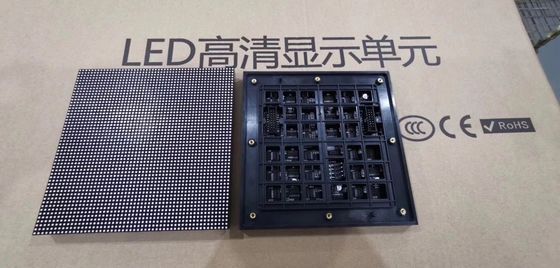

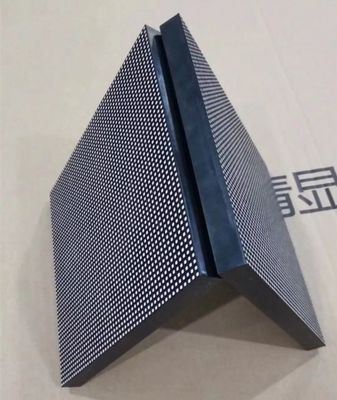

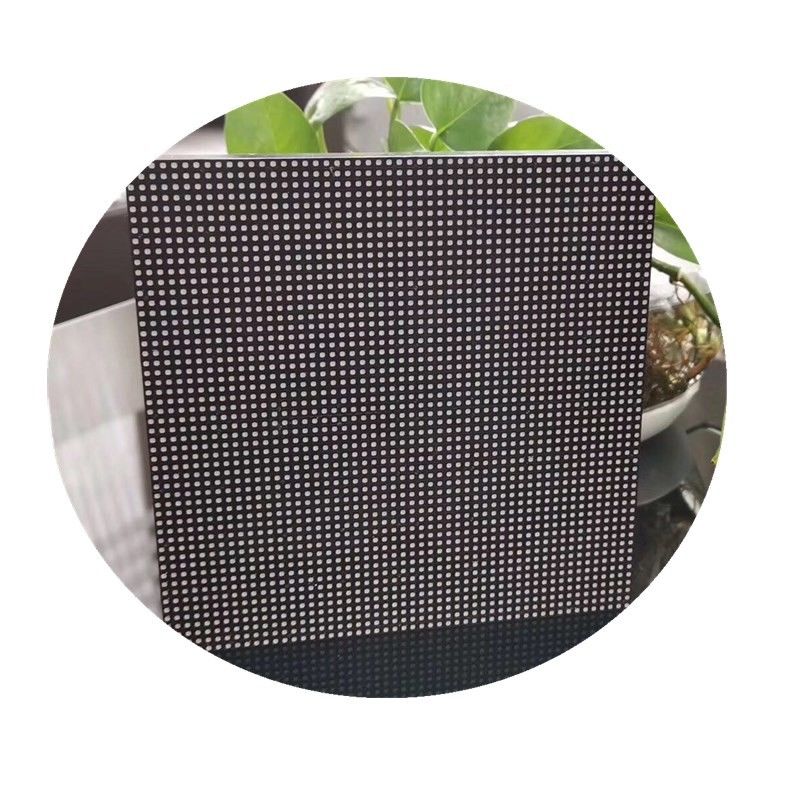

HD LED display for P3 outdoor full color LED display video players lamppost advertising LED display 160x160mm 1921
P3 outdoor Full color LED Display Specification
| Type | G series G3 | LED type | SMD1921 | |||
| (1)LED chips parameter |  | |||||
| NO. | Color | Iv(mcd) | Rd(nm) | |||
| 1 | R(test condition:15mA,2.0V) | 350mcd | 622nm | |||
| 2 | G(test condition:8mA,3.0V) | 620mcd | 530nm | |||
| 3 | B(test condition:5mA,3.0V) | 95mcd | 472nm | |||
| 1 | LED type | FM-B1921RGBA-HG | |
| 2 | Pixel pitch | 3mm | |
| 3 | Pixel configuration | 1R1G1B | |
| (2)module technical parameter | | ||
| 1 | module resolution(W×H) | 53dots×53dots | |
| 2 | module dimension(W×H×D) | 160mm×160mm×28mm | |
| 3 | mask | Flame retardant PVC | |
| (3)control system parameter | ||
| 1 | the processing color depth | R,G,B≥16bit |
| 2 | driving method | constant current driving 1/13 scan |
| 3 | frame rate | 60Hz (3D high refresh rate :120Hz) |
| 4 | refresh rate | Regular refresh rate:≤900Hz high refresh rate:≤1920Hz |
| 5 | panel color Temp | 2000K～9500K(adjustable) |
| 6 | brightness adjustment | manually/Auto/programme control |
| 7 | pixel correction | point by point correction |
| 8 | control method | synchronism |
| 9 | software interface | Windows XP /7/8/10 |
| 10 | input signal | HDMI,DVI |
Protection degree
Front IP65,RearIP54
Regarding us:
Our products WeiGu LED displays in the rapidly expanding Chinese market at the same time, has towards the international market, and the share of export gradually increasing. (all of our products passed RoHS/CCC/CE/EMC/ISO /FCC certifications. The LED application product variety is complete which researched and manufactured by our company, the product structure diversifying. Including: Cover the indoor and outdoor series.
Applications:
1. Rental display; 2. Advertising LED display; 3. LED TV; 4. Full color anomalous display etc. Products are widely used in various public places: Such as commercial plaza, government agency, stadiums, transport facilities, financial institutions, theater, performance hall, etc. Our products are exported to the United States, Europe, southeast Asia and other countries, Hong Kong, Taiwan and other regions. With international standards of production process, strictly control product quality and won the customer consistent high praise.
Through the ways like cooperation with local customers, set up offices in local, WeiGu LED have set up a batch of after-sales service which can rapidly solve problems. For rapid response, to quickly solve customer problem, personalized solutions. Make the products and services reflect personalized, comprehensive, long cycle, less defects. WeiGu LED is located in Shiyan Town, Baoan district, Shenzhen. Positive response national green environmental protection, energy conservation and emission reduction policy in developing process. We continue to focus on the LED display, striving to become the world's highest cost-effective LED supplier, the solution to the overall service, with the attitude of a new high-speed development in LED display industry.
