Light Weight Curve P10 Outdoor Full Color LED Display Module 7500cd/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Packaging Details: | Plywood case / Flight case / Carton box |
|---|---|
| Delivery Time: | 3-5 days |
| Supply Ability: | 3000Sq.m |
|
Detail Information |
|||
| Product Name: | P10 Outdoor Full Color LED Display | Pixel Pitch: | 10mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/DIP 346 | Density: | 10,000 Pixel/m2 |
| Cabinet Size(L×W×H)mm: | 960mm×960mm×130mm | Cabinet Resolution: | 96×96 |
| Driving IC: | MBI5124 | Contrast: | 1000:1 |
| Highlight: | outdoor advertising led display screen,outdoor full color led screen |
||
Product Description

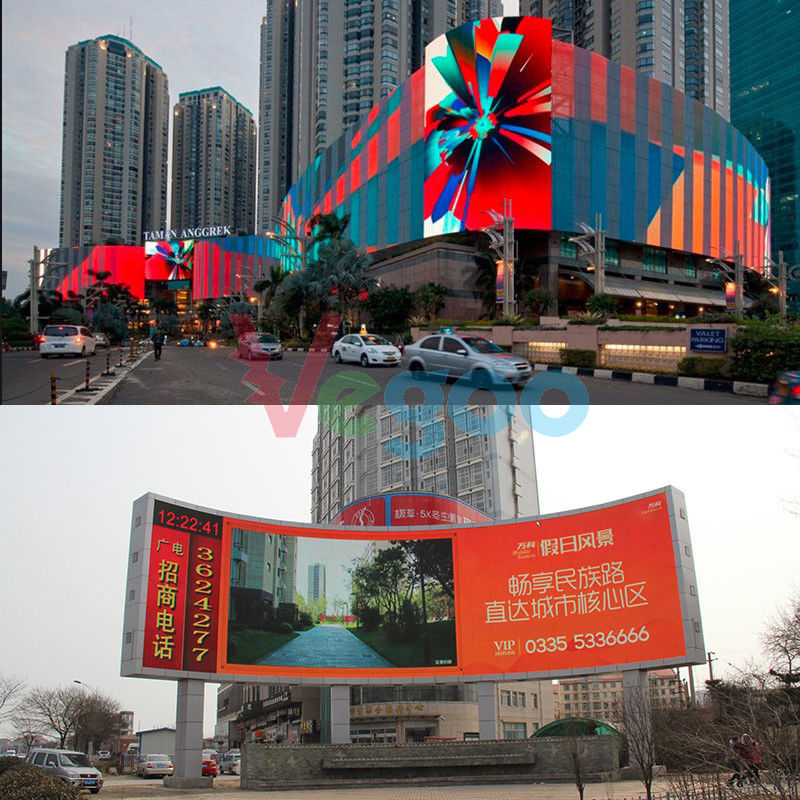

Light weight curve P10 Outdoor Full color LED Display 7500cd/㎡
Description:
LED display with its light weight (12.8 kg) and wide application possibilities. The
portable, waterproof I-Magic takes only 10 seconds to assemble. Its main advantages include:
• Light weight and slim design
• Easy and fast installation and maintenance
• Waterproof, wind resistant and great heat dissipation
• Indoor and outdoor screens are compatible with each other

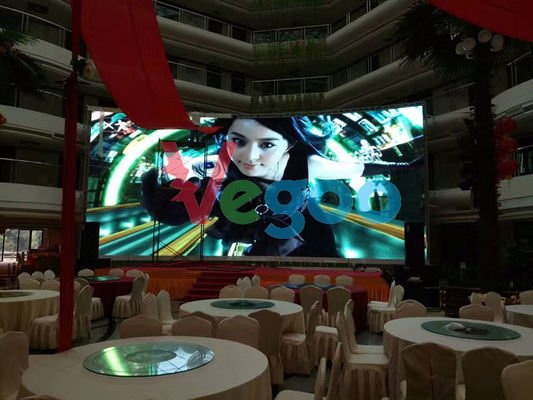

• Can be used for any stage application
• Floor LED display can bear 1 ton weight
• Hanging, pile-up and fix installation available
| Product Name | Specification | ||||||||||
| Pixel Pitch | 10mm | ||||||||||
| Pixel Configuration | 1R1G1B/DIP 346 | ||||||||||
| Density | 10,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm or 160mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 32×16 | ||||||||||
| Cabinet Resolution | 96×96 | ||||||||||
| Driving Method | 1/ 4 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 7500cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power: ＜850W | ||||||||||
| Average power: ＜340W | |||||||||||
| Module Weight | 0.5kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :
1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
