High Refresh Rate Indoor Full Color LED Display P5 Led Panel 320mm×160mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD 5 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 sq.m |
|---|---|
| Packaging Details: | Flight case |
| Delivery Time: | 10-15 days |
| Supply Ability: | 3000sq.m/month |
|
Detail Information |
|||
| Product Name: | P5 Indoor Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD3528 Black Lamp | Moduel Size(L×W)mm: | 320mm×160mm |
| Brightness: | 800CD/㎡ | Contrast: | 1000:1 |
| Highlight: | indoor advertising led display,indoor full color led display screen |
||
Product Description
High refresh rate P5 Indoor Full color LED Display 320mm×160mm
Description:
1. High refresh rate
2. Iron standra cabinet
3. Too-less&easy to do installation
4. semless assembly
P5 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD3528 Black lamp | ||||||||||
| Density | 40,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||

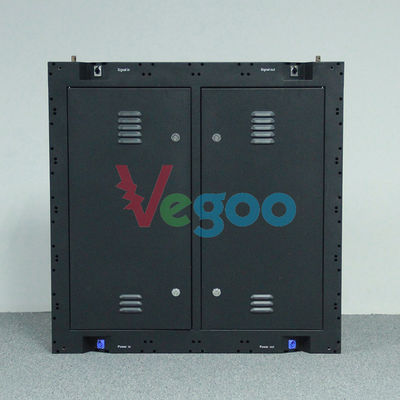

| Cabinet Size(L×W×H)mm | 640mm×640mm×90mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 128×128 | ||||||||||
| Driving Method | 1/16 Scan | ||||||||||
| Driving IC | MBI5124 | ||||||||||
| Brightness | 800CD/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜600W | ||||||||||
| Average power: ＜200W | |||||||||||
| Module Weight | 0.45kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||
Products exchanged or returned :
we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we’ll exchanged after company confirmed.
Casual damage situation:
We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .
Over Guarantee time :
You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
