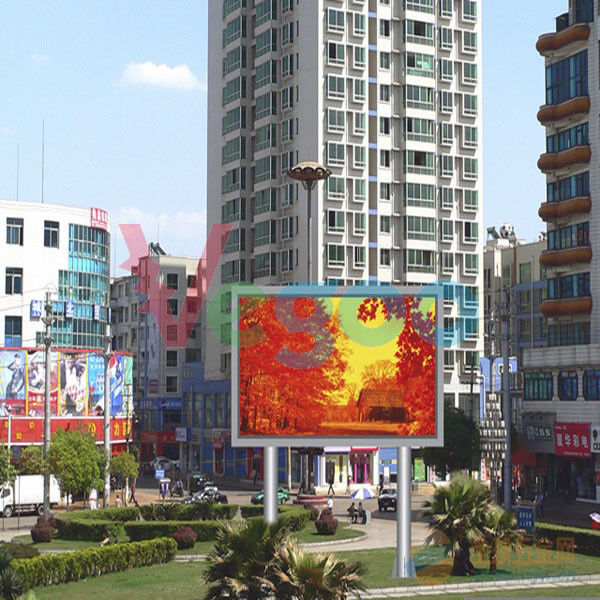

waterproof, dustproof P16 Outdoor Full color LED Display 8500cd/㎡
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD P10 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Packaging Details: | Plywood case / Flight case / Carton box |
|---|---|
| Delivery Time: | 3-5 days |
| Supply Ability: | 3000Sq.m |
|
Detail Information |
|||
| Product Name: | P16 Outdoor Full Color LED Display | Pixel Pitch: | 16mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/DIP 546 | Density: | 3,906 Pixel/m2 |
| Moduel Size(L×W)mm: | 256mm×256mm | Cabinet Size(L×W×H)mm: | 1024mm×1024mm×130mm |
| Module Resolution: | 16×16 | Cabinet Resolution: | 64×64 |
| Driving Method: | Static | Driving IC: | MBI5124 |
| Brightness: | 8500cd/㎡ | Contrast: | 1000:1 |
| Highlight: | outdoor advertising led display screen,outdoor digital signage displays |
||
Product Description
| Product Name | Specification | |||||||||
| Pixel Pitch | 16mm | |||||||||
| Pixel Configuration | 1R1G1B/DIP 546 | |||||||||
| Density | 3,906 pixel/m2 | |||||||||
| Moduel Size(L×W)mm | 256mm×256mm | |||||||||
| Cabinet Size(L×W×H)mm | 1024mm×1024mm×130mm | |||||||||
| Module Resolution | 16×16 | |||||||||
| Cabinet Resolution | 64×64 | |||||||||
| Driving Method | Static | |||||||||
| Driving IC | MBI5124 | |||||||||
| Brightness | 8500cd/㎡ | |||||||||
| Contrast | 1000:1 | |||||||||
| Brightness Adjustment | Auto and Manual | |||||||||
| Power Consumption | Max Power: ＜1200W | |||||||||
| Average power: ＜550W | ||||||||||
| Module Weight | 0.8kg | |||||||||
| Color Temperature | 9500K—11500K | |||||||||
| Horizontal Viewing Angle | 140º | |||||||||
| Vertical Viewing Angle | 140º | |||||||||
| Signal Processing | 10 or 14bit | |||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | |||||||||
| Frame Frequency | 65 Hz | |||||||||
| Refresh Rate | >1920Hz | |||||||||
| MTBF | >50000 hours | |||||||||
| Life Span | 100,000 Hours | |||||||||
| Operating Temperature | Working : -20 - 65 ℃ | |||||||||
| Storage : -40 - 85 ℃ | ||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | |||||||||
| Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | |||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | |||||||||
| Power Supply | AC 110-220V | |||||||||
| Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | |||||||||
Competitive Advantages:
1. Certification :CE,FCC,UL,EMC,ROHS,ETL,SGS ,CCC,ISO9001
2. Research capability:
a:Our R&D team possesses 14% of total staff and most of the developing engineers with more than 10
years experience in LED industry.
b:National high-tech enterprise with more than 50 patents at home and abroad.
3. Strict quality control procedure:
a.Aging testing:72hours aging testing in high temperature for LED Modules before glue painting and after
QC functional testing, another 72 hours aging testing for LED cabinet before delivery.
b.Waterproof testing: The assembled LED cabinets need to be taken shower comprehensively, and the
f-ront side put into the water. It ensures the Ingress Protection level is up to IP65.
c.Anti-rusting testing:PCB, Screws, and LED cabinets are under salty testing for 24 hours
d.Simulated Vibration test:To avoid the defect during transportation, the Simulated Vibration test has been
conducted before delivery, especially for the Traffic Sign and Truck-Mounted LED Display.
e.The Debugging testing: The debugging testing of the whole screen under a simulated installation
enviro-nment is conducted for ensuring high-quality display performance on the real spot.
4. Warranty terms:
2 years quality warranty and during this period Dicolor will provide free parts for replacement with any
pro-blem ;the buyer can return the defective components due to technical or quality problems to the seller.
