Synchronous/Asynchronous Control P16 Outdoor Full color LED Display 8500cd/㎡

China Synchronous/Asynchronous Control  P16 Outdoor Full color LED Display 8500cd/㎡ supplier
Synchronous/Asynchronous Control  P16 Outdoor Full color LED Display 8500cd/㎡ supplier Synchronous/Asynchronous Control  P16 Outdoor Full color LED Display 8500cd/㎡ supplier

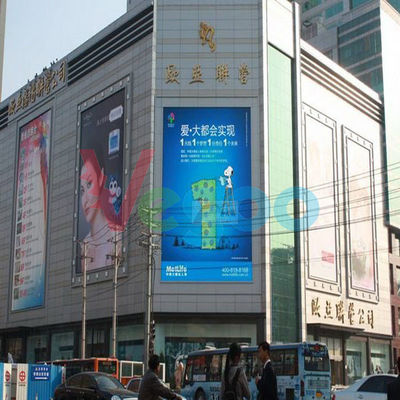

Large Image :  Synchronous/Asynchronous Control P16 Outdoor Full color LED Display 8500cd/㎡

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE/ROHS/FCC/
Model Number: VG-FD P10

Payment & Shipping Terms:

Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 3-5 days
Supply Ability: 3000Sq.m
Detailed Product Description
Product Name: P16 Outdoor Full Color LED Display Pixel Pitch: 16mm
Pixel Configuration: 1R1G1B/DIP 546 Moduel Size(L×W)mm: 256mm×256mm
Module Resolution: 16×16 Cabinet Resolution: 64×64
Driving IC: MBI5124 Brightness: 8500cd/㎡
High Light:

outdoor advertising led display screen


outdoor full color led screen



advertising media, sports stadiums, airport station integrated information dissemination, business establishments, public square

Pixel pitch: P16mm
1. Hanging beam structural design makes it easy and fast for installation
2. Neat and Hidden Wiring allow the display more tidy and beautiful.
3. Hanging beam and the base come to unity, That is, hanging beam could be used as a base when we need to install display on
the floor. Even no back frame, the base can support the whole display if only the display's weight is 4m more or less. Efficiently
utilize resources, reduce costs, convenient for installation .
4. locks on both sides of cabinet contribute to uniformity and flatness of two neighboring cabinets.
5. fast installation, a cabinet could be uninstalled in one minute.

P16 Outdoor Full color LED Display Specification


Product Name Specification
Pixel Pitch 16mm
Pixel Configuration 1R1G1B/DIP 546
Density 3,906 pixel/m2
Moduel Size(L×W)mm 256mm×256mm
Cabinet Size(L×W×H)mm 1024mm×1024mm×130mm
Module Resolution 16×16
Cabinet Resolution 64×64
Driving Method Static
Driving IC MBI5124
Brightness 8500cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power: <1200W
Average power: <550W
Module Weight 0.8kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110-220V
Protection waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

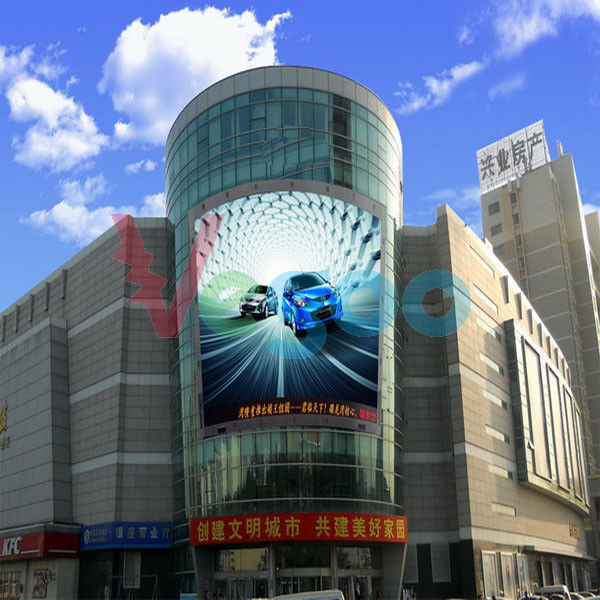

Synchronous/Asynchronous Control  P16 Outdoor Full color LED Display 8500cd/㎡ 0


Quality Guarantee:

1.The Selection of led

Red,Green and Blue light emitting diode (LED) lamps should be the same grade, height and wavelength on the same displayThe height or Red ,Green and Blue light from light emitting diode(LED ) lamps at the proportion of R:G:B=3:6:1The chips were imported from Optotech Cree/ Nichia are adopted;Adopted automation solid crystal,light split,bonding wire,bagging;

2. Reliability Test
In order to avoid the potential defects caused in the design and production , we conduct a series of reliability test such as the electronic performance test for the semi-finished products , the anti dust test, the waterproof test , the anticorrosion test( salty spraying test ), the vibration test and thermal shock tester etc. The reliability test for the semi-finished products: Before gluing semi-finished modules , more than 48 hours aging should be made in the high temperature for all the modules , After QC inspection ok then can package itThe reliability test for the finished products.: After assembling finished modules to the led cabinets and simulating the assembly for the whole cabinets , we keep them aging for more than 72 hours , if no defects found , then we will delivery goods to our customers .The waterproof test : During the rainy seasons , the waterproof performance for the outdoor led display is quite important. the performs high-press water spraying as well as against the front cabinet to ensure, if waterproof test in good conditions , therefore , protection rate can reach IP65The anti corrosion test : In order to ensure the reliability of anti corrosion of the PCB and cabinet , hence the salty spraying test must be made during the productions Vibration test : For different kind of screens , in order to ensure the reliability of transportation and moving , therefore , the simulated vibration test must be conducted .The environment test : The real outdoor environment can ensure the effects of display in factory are the same as the spot effects
