P5 Outdoor Full color LED Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD P10 |
Payment & Shipping Terms:
| Packaging Details: | Plywood case / Flight case / Carton box |
|---|---|
| Delivery Time: | 3-5 days |
| Supply Ability: | 3000Sq.m |
|
Detail Information |
|||
| Product Name: | P5 Outdoor Full Color LED Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Module Resolution: | 64×32 | Cabinet Resolution: | 192×192 |
| Driving Method: | 1/8 Scan | Driving IC: | MBI5124 Or ICN 2038S |
| Brightness: | 6000cd/㎡ | Contrast: | 1000:1 |
| High Light: | outdoor advertising led display screen,outdoor digital signage displays |
||
Product Description
Description:
1. High brightness which is adjustable to sufficiently meet the needs of various application environments.
2. The raw material of all of the outdoor products including LED chips, mask, glue and steel cabinets
have the ability of enduring high temperature and high humidity,and being anti-UV, waterproof,
anticorrosion and antirust.
3. Every production process is well controlled and all of the electronic components are covered by 2mm
Tri-Guard Lacquer to ensure no oxidation, no rusty and no moisture. Five Guard Lacquer will be used for special requirements.
P5 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| Density | 40,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 6000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜750W | ||||||||||
| Average power: ＜225W | |||||||||||
| Module Weight | 0.28kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
Applications:

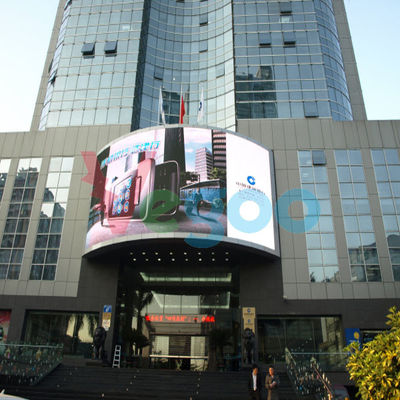

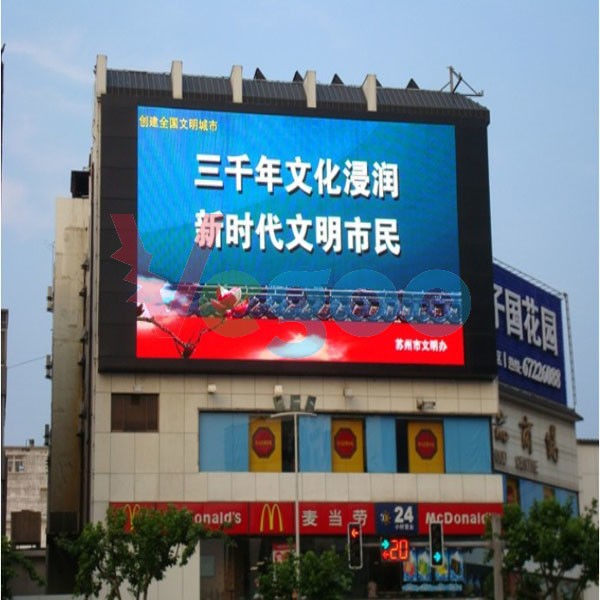

Stage Background
Airport Station
Television Relay
Plaza
Square
Expressway
Entertainment
Commercial center
Our service
1. Your inquiry related to our products or price will be replied in 2hrs
2. OEM customized products
3. 2 years warranty
4. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
5.Free technician training..
6.Top quality+Reasonable price+Responsible After Service=Successful & Win
