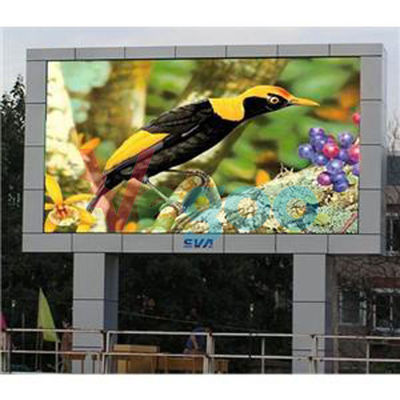

P5 Outdoor Full color LED Display
Product Details:
Place of Origin: | China |
Brand Name: | Vegoo |
Certification: | CE/ROHS/FCC/ |
Model Number: | VG-FD P10 |
Payment & Shipping Terms:
Packaging Details: | Plywood case / Flight case / Carton box |
---|---|
Delivery Time: | 3-5 days |
Supply Ability: | 3000Sq.m |
Detail Information |
|||
Product Name: | P5 Outdoor Full Color LED Display | Pixel Pitch: | 5mm |
---|---|---|---|
Pixel Configuration: | 1R1G1B/SMD2727 | Moduel Size(L×W)mm: | 320mm×160mm |
Module Resolution: | 64×32 | Driving Method: | 1/8 Scan |
Brightness: | 6000cd/㎡ | Contrast: | 1000:1 |
Highlight: | outdoor digital signage displays,outdoor full color led screen |
Product Description
Application and function:
Suit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
1. Video display for advertisement
2. Stage background
3. Live broadcast for news, sport, concert…
4. Information display for time, schedule, text
5. Dynamic display for logo, text, video
P5 Outdoor Full color LED Display Specification
Product Name | Specification | ||||||||||
Pixel Pitch | 5mm | ||||||||||
Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
Density | 40,000 pixel/m2 | ||||||||||
Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
Module Resolution | 64×32 | ||||||||||
Cabinet Resolution | 192×192 | ||||||||||
Driving Method | 1/8 Scan | ||||||||||
Driving IC | MBI5124 or ICN 2038S | ||||||||||
Brightness | 6000cd/㎡ | ||||||||||
Contrast | 1000:1 | ||||||||||
Brightness Adjustment | Auto and Manual | ||||||||||
Power Consumption | Max Power:<750W | ||||||||||
Average power: <225W | |||||||||||
Module Weight | 0.28kg | ||||||||||
Color Temperature | 9500K—11500K | ||||||||||
Horizontal Viewing Angle | 140º | ||||||||||
Vertical Viewing Angle | 140º | ||||||||||
Signal Processing | 10 or 14bit | ||||||||||
Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
Frame Frequency | 65 Hz | ||||||||||
Refresh Rate | >1920Hz | ||||||||||
Control Mode | Synchronous/Asynchronous | ||||||||||
The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
MTBF | >50000 hours | ||||||||||
Life Span | 100,000 Hours | ||||||||||
Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
Storage : -40 - 85 ℃ | |||||||||||
Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
Power Supply | AC 85-264V | ||||||||||
Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) |
Products exchanged or returned :
we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we’ll exchanged after company confirmed.
Casual damage situation:
We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .
Over Guarantee time :
You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
