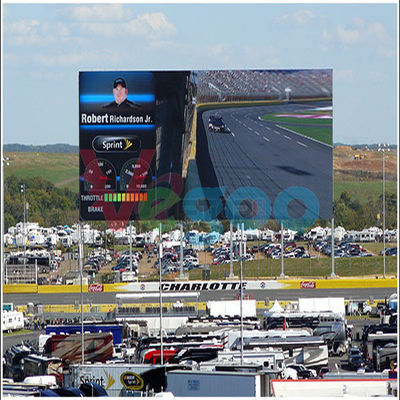

P5 Outdoor Full color LED Display
Product Details:
Place of Origin: | China |
Brand Name: | Vegoo |
Certification: | CE/ROHS/FCC/ |
Model Number: | VG-FD P10 |
Payment & Shipping Terms:
Packaging Details: | Plywood case / Flight case / Carton box |
---|---|
Delivery Time: | 3-5 days |
Supply Ability: | 3000Sq.m |
Detail Information |
|||
Product Name: | P5 Outdoor Full Color LED Display | Pixel Pitch: | 5mm |
---|---|---|---|
Pixel Configuration: | 1R1G1B/SMD2727 | Density: | 40,000 Pixel/m2 |
Moduel Size(L×W)mm: | 320mm×160mm | Cabinet Size(L×W×H)mm: | 960mm×960mm×130mm |
Driving Method: | 1/8 Scan | Driving IC: | MBI5124 Or ICN 2038S |
Brightness: | 6000cd/㎡ | Contrast: | 1000:1 |
Highlight: | outdoor digital signage displays,outdoor full color led screen |
Product Description
Description:
1. High efficiency design overcomes harsh weather conditions.
2. Ultimate reliability
3. Lowest weight in its class
4. Minimum installation costs
5. Fiber-optic data transmission to the display
6. Image feeds delivered in both standard and high-definition formats.
7. Fan less operation ensures quiet, yet powerful performance.
8. Engineered for ease of service with top, back and front access. Easy top, back and front service access.
9. Lighter and thinner than typical fascia displays, reducing installation expenses and improves aesthetics.
10. Flexible, lightweight products that come with the best value at the most attractive prices.
11. Integrates seamlessly with a variety of Our Company's other video screen display products. Cost-effective LED displays that offer excellent black levels, contrast and image quality.
P5 Outdoor Full color LED Display Specification
NO: | Product Name | Specification | ||||||||||
1 | Pixel Pitch | 5mm | ||||||||||
2 | Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
3 | Density | 40,000 pixel/m2 | ||||||||||
4 | Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
5 | Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
6 | Module Resolution | 64×32 | ||||||||||
7 | Cabinet Resolution | 192×192 | ||||||||||
8 | Driving Method | 1/8 Scan | ||||||||||
9 | Driving IC | MBI5124 or ICN 2038S | ||||||||||
10 | Brightness | 6000cd/㎡ | ||||||||||
11 | Contrast | 1000:1 | ||||||||||
12 | Brightness Adjustment | Auto and Manual | ||||||||||
13 | Power Consumption | Max Power:<750W | ||||||||||
14 | Average power: <225W | |||||||||||
15 | Module Weight | 0.28kg | ||||||||||
16 | Color Temperature | 9500K—11500K | ||||||||||
17 | Horizontal Viewing Angle | 140º | ||||||||||
18 | Vertical Viewing Angle | 140º | ||||||||||
19 | Signal Processing | 10 or 14bit | ||||||||||
20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
22 | Frame Frequency | 65 Hz | ||||||||||
23 | Refresh Rate | >1920Hz | ||||||||||
24 | Control Mode | Synchronous/Asynchronous | ||||||||||
25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
27 | MTBF | >50000 hours | ||||||||||
28 | Life Span | 100,000 Hours | ||||||||||
29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
30 | Storage : -40 - 85 ℃ | |||||||||||
31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
35 | Power Supply | AC 85-264V | ||||||||||
36 | Protection | waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) |
Services Before-sale:
Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.
Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :
Try the best to meet the reasonable demands by clients Provisional changed .
Keep close touch with the clients during the period if installation .
Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:
Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.
You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .
Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
