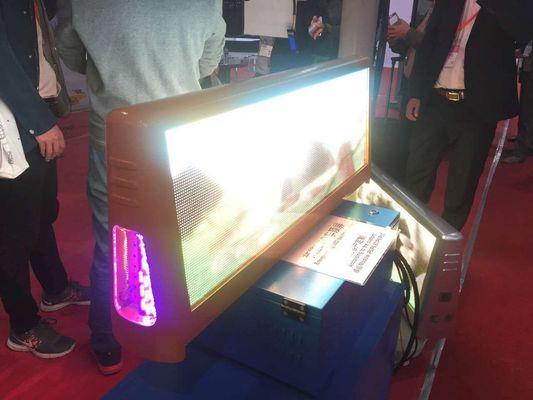

High Brightness P5 Taxi LED Display Led Taxi Sign MBI5124 / ICN 2038S
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-SD P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 10 days |
|
Detail Information |
|||
| Product Name: | P5 Outdoor Full Color Advertising Display | Pixel Pitch: | 5mm |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B/SMD2727 | Density: | 40,000 Pixel/m2 |
| Moduel Size(L×W)mm: | 320mm×160mm | Cabinet Size(L×W×H)mm: | 960mm×960mm×130mm |
| Module Resolution: | 64×32 | Cabinet Resolution: | 192×192 |
| High Light: | taxi top led display,taxi top digital signage |
||
Product Description
High brightness P5 Taxi LED Display MBI5124 or ICN 2038S
Description:
1) High cost performance.
2) Good Consistency and High resolution.
3) High brightness and refresh rate .
4) Good after-sale services.
5) In the premise of guaranteeing quality,our company sales at low profit and warranty for 2 years.
Protection
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
P5 Outdoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 5mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2727 | ||||||||||
| Density | 40,000 pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 320mm×160mm | ||||||||||
| Cabinet Size(L×W×H)mm | 960mm×960mm×130mm | ||||||||||
| Module Resolution | 64×32 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/8 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 6000cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜750W | ||||||||||
| Average power: ＜225W | |||||||||||
| Module Weight | 0.28kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 85-264V | ||||||||||
Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :
1. Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;
2. Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;
3. On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
Upgrade Service :
Unschedule,we will upgrade our system of products without extra formal; we’ll do our best to help users with upgrading ; the following conditions are excluded by this warranty :
1. Without approved documents;
2. Series code on products having been torn or changed ;
3. Damage caused by lighting strike or electrical problems;
4. Risks caused by irresistible incidents includes all kinds of natural disasters, fire, wars, policy changes, and some other human error accidents.
5. Users or third party refit or repaired by themselves without VEGOO’s permission ;
6. Water intrusion or corrosion caused by improper keeping or operating ;
7. Over period of free maintenance .
