|Product Name:||P5 Outdoor Full Color Advertising Display||Pixel Pitch:||5mm|
|Pixel Configuration:||1R1G1B/SMD2727||Moduel Size(L×W)mm:||320mm×160mm|
|Module Resolution:||64×32||Cabinet Resolution:||192×192|
|Driving Method:||1/8 Scan||Contrast:||1000:1|
taxi top digital signage,
taxi rooftop advertising signs

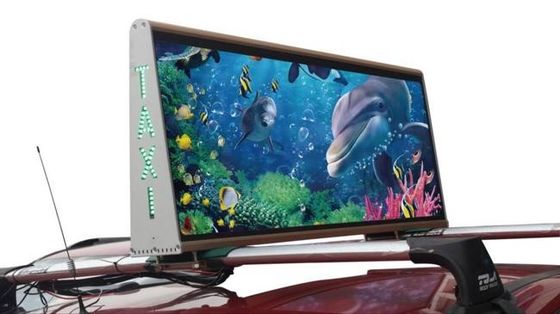

Flashing Taxi LED Display Stop Sign Message For Taxi Top Advertisement
Taxi top display now is so popular all over the world. Widely used for message and video advertising.
P5 Outdoor Full color LED Display Specification
|Driving Method||1/8 Scan|
|Driving IC||MBI5124 or ICN 2038S|
|Brightness Adjustment||Auto and Manual|
|Power Consumption||Max Power:＜750W|
|Average power: ＜225W|
|Horizontal Viewing Angle||140º|
|Vertical Viewing Angle||140º|
|Signal Processing||10 or 14bit|
|Control Distance||cable100m,Multimode500m,Single mode 2km|
|Frame Frequency||65 Hz|
|The Opposite Calibration Curve||With Eight Optional Gamma Calibration Curve|
|Users can choose the recommended curve or adjust it based on actual situation|
|Life Span||100,000 Hours|
|Operating Temperature||Working : -20 - 65 ℃|
|Storage : -40 - 85 ℃|
|Environment Temperature||-30℃ to 60℃; humidity Rh10% to 95%|
|Remote Control||Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)|
|Self-checking Technique||Self-inspection, communication test, power test, temperature monitoring (Be customized)|
|Operating System Platform||WindowsNT,Windows2000,WindowsXP,Windows7|
|Power Supply||AC 85-264V|
|Protection||waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)|
1.The Selection of led
Red,Green and Blue light emitting diode (LED) lamps should be the same grade, height and wavelength on the same displayThe height or Red ,Green and Blue light from light emitting diode(LED ) lamps at the proportion of R:G:B=3:6:1The chips were imported from Optotech Cree/ Nichia are adopted;Adopted automation solid crystal,light split,bonding wire,bagging;
2. Reliability Test
In order to avoid the potential defects caused in the design and production , we conduct a series of reliability test such as the electronic performance test for the semi-finished products , the anti dust test, the waterproof test , the anticorrosion test( salty spraying test ), the vibration test and thermal shock tester etc. The reliability test for the semi-finished products: Before gluing semi-finished modules , more than 48 hours aging should be made in the high temperature for all the modules , After QC inspection ok then can package itThe reliability test for the finished products.: After assembling finished modules to the led cabinets and simulating the assembly for the whole cabinets , we keep them aging for more than 72 hours , if no defects found , then we will delivery goods to our customers .The waterproof test : During the rainy seasons , the waterproof performance for the outdoor led display is quite important. the performs high-press water spraying as well as against the front cabinet to ensure, if waterproof test in good conditions , therefore , protection rate can reach IP65The anti corrosion test : In order to ensure the reliability of anti corrosion of the PCB and cabinet , hence the salty spraying test must be made during the productions Vibration test : For different kind of screens , in order to ensure the reliability of transportation and moving , therefore , the simulated vibration test must be conducted .The environment test : The real outdoor environment can ensure the effects of display in factory are the same as the spot effects
3. Quality Management Implement 5 s site management, general SPC statistical process control methods Through the ISO9001, CE, ROHS, FCC certification Perfect quality, IQC, IPQC, OQC, LQC, QA engineering, QE engineering and supplier management
4. Service and Guarantees
Services Before-sale:Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
Service In - sales :Try the best to meet the reasonable demands by clients Provisional changed .Keep close touch with the clients during the period if installation .Cooperate friendly with the clients, satisfy the clients with the best quality of led display .
Service After-sale:Normal products have one year guarantee, and whole life maintenance, free charges . we just charge materials cost only if products out off guarantee.You can down load and upgrade the related operating software of Led display freely from our company website , so as to resolve the problems when you use our led display .Check the quality of appliance , do maintenance job and ask good suggestions form clients on a regular time schedule .
4. Customer Service
1) Guarantee Time: Within one year after delivery form factory
2) Maintenance Coverage : LED modules,Power supply ,Control system and other accessories ( This warranty exclude accessories purchasing form other factory )
3) Maintenance Mode :
By returned maintenance , through express or by other way
4) Response time for maintenance :Return mode: after receiving the returned products, we will repaired them within 24 hours and send them back to the user;Telephone or internet mode: we will contact user within 2 hours after getting informations and give solution within 8 hours;On-site mode: ( only for user inside china ) after receiving maintenance request , we will respond within 48 hours to user in Guangdong province; 72 hours to user outside Guangdong province, In the case of some special conditions , problems could be solved on the basis of friendly negotiation between two parties.
5. Upgrade Service :
Unschedule,we will upgrade our system of products without extra formal; we'll do our best to help users with upgrading ; the following conditions are excluded by this warranty : Without approved documents;Series code on products having been torn or changed ;Damage caused by lighting strike or electrical problems;Risks caused by irresistible incidents includes all kinds of natural disasters, fire, wars, policy changes, and some other human error accidents. Users or third party refit or repaired by themselves without VEGOO's permission ;Water intrusion or corrosion caused by improper keeping or operating ;Over period of free maintenance .
6. Products exchanged or returned :
we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we'll exchanged after company confirmed.
7. Casual damage situation:
We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .
8. Over Guarantee time :
You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
