1R1G1B SMD3528 P7.62 Indoor Full Color Led Panel 17777 Pixel/M2

China 1R1G1B SMD3528 P7.62 Indoor Full Color Led Panel 17777 Pixel/M2 supplier
1R1G1B SMD3528 P7.62 Indoor Full Color Led Panel 17777 Pixel/M2 supplier 1R1G1B SMD3528 P7.62 Indoor Full Color Led Panel 17777 Pixel/M2 supplier

Large Image :  1R1G1B SMD3528 P7.62 Indoor Full Color Led Panel 17777 Pixel/M2

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE/ROHS/FCC/
Model Number: VG-FD 3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 15 working days
Supply Ability: 3000 Sq.m / month
Contact Now
Detailed Product Description
Product Name: P7.62 Indoor Full Color LED Display Certification: CE/ROHS/FCC
Pixel Pitch: 7.62mm Pixel Configuration: 1R1G1B/SMD3528 White Lamp
Density: 17,777 Pixel/m2 Moduel Size(L×W)mm: 244mm×244mm
Brightness: 1200cd/㎡ Contrast: 1000:1
High Light:

full color led display board


indoor full color led display screen


Remote Control P7.62 Indoor LED Screen Display 17,777 pixel/m2



Indoor LED Screen Main Features:


Excellent heat dissipation,noiseless, preference for indoor use;


Wide viewing angle, adjustable brightness for its vertical of 120 deg;


Eliminate noise for its noiseless design;


With working life-span at least 100,000 Hours


High contrast mask, no dazzle, with better contrast ratio;


Fast get through input/output signal;


Seamless connection;


Support adjustable color temperature within 9500K—11500K



Remote Control


Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)



P7.62 Indoor Full color LED Display Specification:


NO: Product Name Specification
1 Pixel Pitch 7.62mm
2 Pixel Configuration 1R1G1B/SMD3528 White lamp
3 Density 17,777 pixel/m2
4 Moduel Size(L×W)mm 244mm×244mm
5 Cabinet Size(L×W×H)mm 732mm×732mm×90mm
6 Module Resolution 32×32
7 Cabinet Resolution 96×96
8 Driving Method 1/8 Scan
9 Driving IC MBI5124
10 Brightness 1200cd/㎡
11 Contrast 1000:1
12 Brightness Adjustment Auto and Manual
13 Power Consumption Max Power:<650W
14 Average power: <300W
15 Module Weight 0.45kg
16 Color Temperature 9500K—11500K
17 Horizontal Viewing Angle 140º
18 Vertical Viewing Angle 140º
19 Signal Processing 10 or 14bit
20 Grey Processing 1024×1024×1024
21 Control Distance cable100m,Multimode500m,Single mode 2km
22 Frame Frequency 65 Hz
23 Refresh Rate >1920Hz
24 Control Mode Synchronous/Asynchronous
25 The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
26 Users can choose the recommended curve or adjust it based on actual situation
27 MTBF >50000 hours
28 Life Span 100,000 Hours
29 Operating Temperature Working : -20 - 65 ℃
30 Storage : -40 - 85 ℃
31 Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
33 Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
34 Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
35 Power Supply AC 110-220V
36 Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)

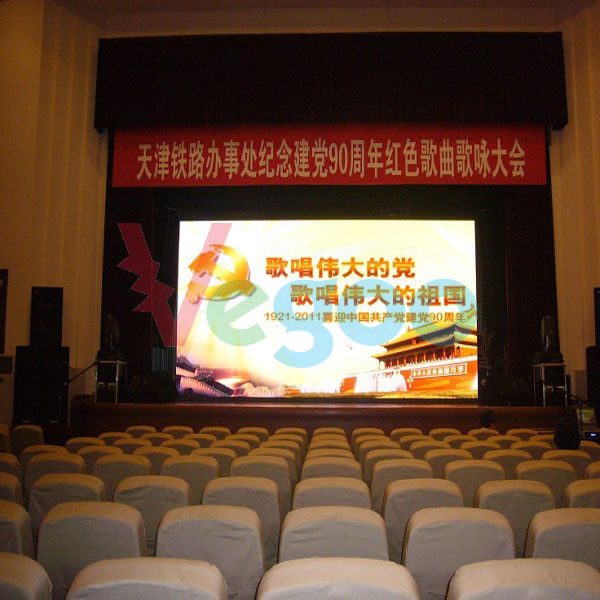

Stage Background

Airport Station

Television Relay

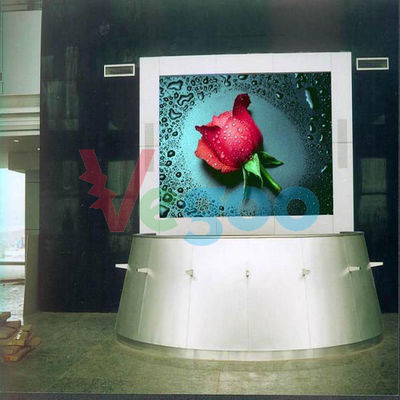

Commercial center



Products exchanged or returned :

we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we’ll exchanged after company confirmed.


Casual damage situation:

We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .


Over Guarantee time :

You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !



Services Before-sale:


Set a special telephone line to resolve the confusion from clients and supply free technology services by telephone.


Consider the demands of clients carefully , study the situation of the installation condition , Team up the related staff and workers promptly , give clients design program details to help them choose the products which they wanted as soon as possible
