High Brightness Led Public Display 3mm Led Screen 1R1G1B / SMD2121 Black Lamp
Product Details:
| Place of Origin: | China |
| Brand Name: | Vegoo |
| Certification: | CE/ROHS/FCC/ |
| Model Number: | VG-FD 3 |
| Document: | Product Brochure PDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Sq.m |
|---|---|
| Packaging Details: | Plywood case / Flight case / Carton box |
| Delivery Time: | 15 working days |
| Supply Ability: | 3000 Sq.m / month |
|
Detail Information |
|||
| Product Name: | P3 Indoor Full Color LED Display | Certification: | CE/ROHS/FCC |
|---|---|---|---|
| Pixel Pitch: | 3mm | Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp |
| Density: | 111,111pixel/m2 | Moduel Size(L×W)mm: | 192mm×192mm |
| Brightness: | 800cd/㎡ | Contrast: | 1000:1 |
| Highlight: | full color led display board,indoor advertising led display |
||
Product Description
P3 Indoor Full color LED Display 1R1G1B/SMD2121 Black lamp
Description:
1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under direct sunlight.
2) Energy saving:low electric current,high-bright lamps
3) The brightness can be adjustable to meet the need of changing environment
4) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal
5) Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .
6) Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.
7) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.
8) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it’s easy to operate the system.
9) Favorable effect: using dot to dot calibration technology makes the image clearer and the layering stronger
10) Convenient installation and maintenance of display modules
P3 Indoor Full color LED Display Specification
| Product Name | Specification | ||||||||||
| Pixel Pitch | 3mm | ||||||||||
| Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
| Density | 111,111pixel/m2 | ||||||||||
| Moduel Size(L×W)mm | 192mm×192mm | ||||||||||
| Cabinet Size(L×W×H)mm | 576mm×576mm×90mm | ||||||||||
| Module Resolution | 64×64 | ||||||||||
| Cabinet Resolution | 192×192 | ||||||||||
| Driving Method | 1/32 Scan | ||||||||||
| Driving IC | MBI5124 or ICN 2038S | ||||||||||
| Brightness | 800cd/㎡ | ||||||||||
| Contrast | 1000:1 | ||||||||||
| Brightness Adjustment | Auto and Manual | ||||||||||
| Power Consumption | Max Power:＜800W | ||||||||||
| Average power: ＜200W | |||||||||||
| Module Weight | 0.25kg | ||||||||||
| Color Temperature | 9500K—11500K | ||||||||||
| Horizontal Viewing Angle | 140º | ||||||||||
| Vertical Viewing Angle | 140º | ||||||||||
| Signal Processing | 10 or 14bit | ||||||||||
| Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| Frame Frequency | 65 Hz | ||||||||||
| Refresh Rate | >1920Hz | ||||||||||
| Control Mode | Synchronous/Asynchronous | ||||||||||
| The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| MTBF | >50000 hours | ||||||||||
| Life Span | 100,000 Hours | ||||||||||
| Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| Storage : -40 - 85 ℃ | |||||||||||
| Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| Power Supply | AC 110-220V | ||||||||||
| Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) | ||||||||||

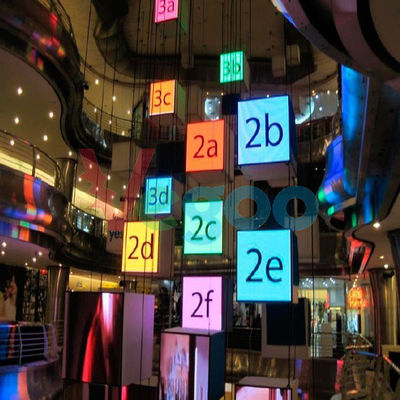

Applications:
Stage Background
Airport Station
Television Relay
