High Definition Flexible P4 SMD Curved Led Video Ball Indoor Led Advertising Screen For Museum

China High Definition Flexible P4 SMD Curved Led Video Ball Indoor Led Advertising Screen For Museum supplier
High Definition Flexible P4 SMD Curved Led Video Ball Indoor Led Advertising Screen For Museum supplier High Definition Flexible P4 SMD Curved Led Video Ball Indoor Led Advertising Screen For Museum supplier

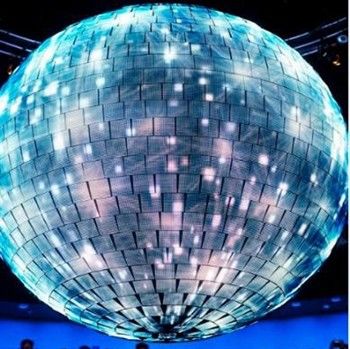

Large Image :  High Definition Flexible P4 SMD Curved Led Video Ball Indoor Led Advertising Screen For Museum

Product Details:

Place of Origin: China
Brand Name: Vegoo
Certification: CE/ROHS/FCC/
Model Number: VG-SD P4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sq.m
Packaging Details: Plywood case / Flight case / Carton box
Delivery Time: 35-60 working days
Detailed Product Description
Product Name: Ball LED Display Pixel Pitch: 4mm
Cabinet Size(L×W×H)mm: 512mm×512mm×90mm Module Resolution: 64×32
Brightness: 1000cd/㎡ Contrast: 1000:1
Color Temperature: 9500K—11500K Horizontal Viewing Angle: 140º
High Light:

led ball screen

,

led display ball



Vegoo Special LED Ball LED Display Screen

P4 SMD Curved Led Display High Definition Video Ball in the Museum



Description:



P4 SMD high definition full color flexible led ball display
1.wide viewing angle
2.hi-uniformity
3.CE,ROHS,FCC
4.tech supp





P4 Indoor Full color LED Display Specification:



Product Name Specification
Pixel Pitch 4mm
Pixel Configuration 1R1G1B/SMD2121 Black lamp
Density 62,500 pixel/m2
Moduel Size(L×W)mm 256mm×128mm
Cabinet Size(L×W×H)mm 512mm×512mm×90mm
Module Resolution 64×32
Cabinet Resolution 128×128
Driving Method 1/16 Scan
Driving IC MBI5124 or ICN 2038S
Brightness 1000cd/㎡
Contrast 1000:1
Brightness Adjustment Auto and Manual
Power Consumption Max Power:<610W
Average power: <240W
Module Weight 0.2kg
Color Temperature 9500K—11500K
Horizontal Viewing Angle 140º
Vertical Viewing Angle 140º
Signal Processing 10 or 14bit
Grey Processing 1024×1024×1024
16834×16834×16834
Control Distance cable100m,Multimode500m,Single mode 2km
Frame Frequency 65 Hz
Refresh Rate >1920Hz
Control Mode Synchronous/Asynchronous
The Opposite Calibration Curve With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
MTBF >50000 hours
Life Span 100,000 Hours
Operating Temperature Working : -20 - 65 ℃
Storage : -40 - 85 ℃
Environment Temperature -30℃ to 60℃; humidity Rh10% to 95%
Remote Control Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
Self-checking Technique Self-inspection, communication test, power test, temperature monitoring (Be customized)
Operating System Platform WindowsNT,Windows2000,WindowsXP,Windows7
Power Supply AC 110–220V
Protection dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)





Applications:



performance shows, sports activities, advertising, information publishing, celebrating activities, hotel entertainment ect.



One type realize Multi-Function for creative stage led screen,also can use as advertising led screen, sky backdrop curtain, stadium screen, and dance floor.





Products exchanged or returned :

we supply our products strictly according to the contract list , if the quantity or specification doesn't meet our contract list, the buyer can give objections within 3 days after received the products , we’ll exchanged after company confirmed.



Casual damage situation:

We can provide corresponding fittings without extra fee when improper operation or unexpected artificial damaged arise .



Over Guarantee time :

You only have to pay maintenance cost such as labor costs , spare parts costs and round-trip costs !
