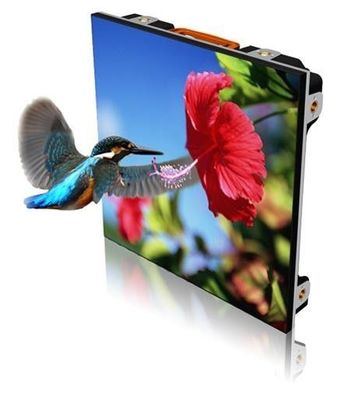

Rental led Screen display for outdoor P4.81 Video Wall with SMD 2121 1100cd/㎡
Product Details:
Place of Origin: | made in China |
Brand Name: | Vegoo |
Certification: | CE/ROHS/FCC |
Model Number: | VG-RD 4.81 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 sq.m |
---|---|

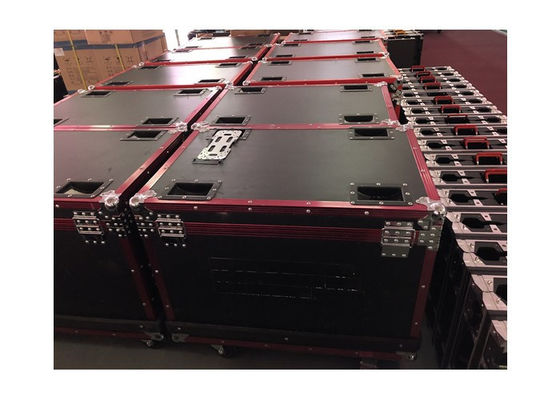

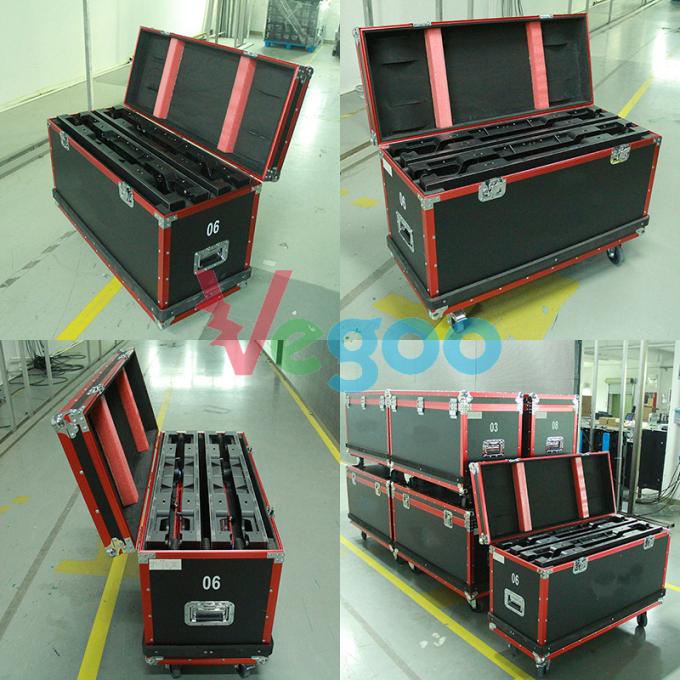

Packaging Details: | Flight case |
Delivery Time: | 10-15 days |
Supply Ability: | 3000sq.m/month |
Detail Information |
|||
Product Name: | P4.81 Outdoor LED Video Display | Pixel Configuration: | 1R1G1B/SMD2121 Black Lamp |
---|---|---|---|
Density: | 43,243 Pixel/m2 | Cabinet Size(L×W×H)mm: | 500mm×500mm/1000mm×90mm |
Brightness: | 1100cd/㎡ | Contrast: | 1000:1 |
Highlight: | outdoor rental led display,led video wall rental |
Product Description
Rental led Screen display for outdoor P4.81 Video Wall with SMD 2121 1100cd/㎡
1. Videos
2. Text /image/information publish
3. Advertising and billboard
4. Safety functional
5. Accurate system: none error occurs.
6. Real time.
7. reaction function
8. Remote monitoring –details.
9. Remote and step on powering system
P4.81 Indoor Full color LED Display Specification
Product Name | Specification | ||||||||||
Pixel Pitch | 4.81mm | ||||||||||
Pixel Configuration | 1R1G1B/SMD2121 Black lamp | ||||||||||
Density | 43,243 pixel/m2 | ||||||||||
Moduel Size(L×W)mm | 250mm×250mm | ||||||||||
Cabinet Size(L×W×H)mm | 500mm×1000mm×90mm | ||||||||||
Module Resolution | 52×52 | ||||||||||
Cabinet Resolution | 104×208 | ||||||||||
Driving Method | 1/13 Scan | ||||||||||
Driving IC | MBI5124 | ||||||||||
Brightness | 1100cd/㎡ | ||||||||||
Contrast | 1000:1 | ||||||||||
Brightness Adjustment | Auto and Manual | ||||||||||
Power Consumption | Max Power:<420W | ||||||||||
Average power: <240W | |||||||||||
Module Weight | 052kg | ||||||||||
Color Temperature | 9500K—11500K | ||||||||||
Horizontal Viewing Angle | 140º | ||||||||||
Vertical Viewing Angle | 140º | ||||||||||
Signal Processing | 10 or 14bit | ||||||||||
Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
Frame Frequency | 65 Hz | ||||||||||
Refresh Rate | >1920Hz | ||||||||||
Control Mode | Synchronous/Asynchronous | ||||||||||
The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
MTBF | >50000 hours | ||||||||||
Life Span | 100,000 Hours | ||||||||||
Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
Storage : -40 - 85 ℃ | |||||||||||
Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
Power Supply | AC 110-220V | ||||||||||
Protection | dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized) |
Application:
Features and Advantages:
Quick Assembly and Disassebmly
Adjustable Angle Lock, Flexible Stage Design

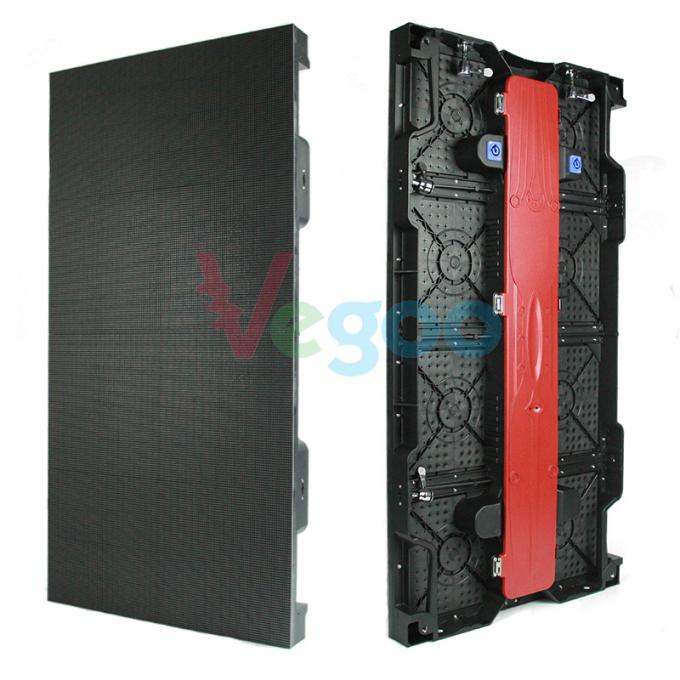

Slim and Light Weight Die Casting Aluminum Cabinet Design

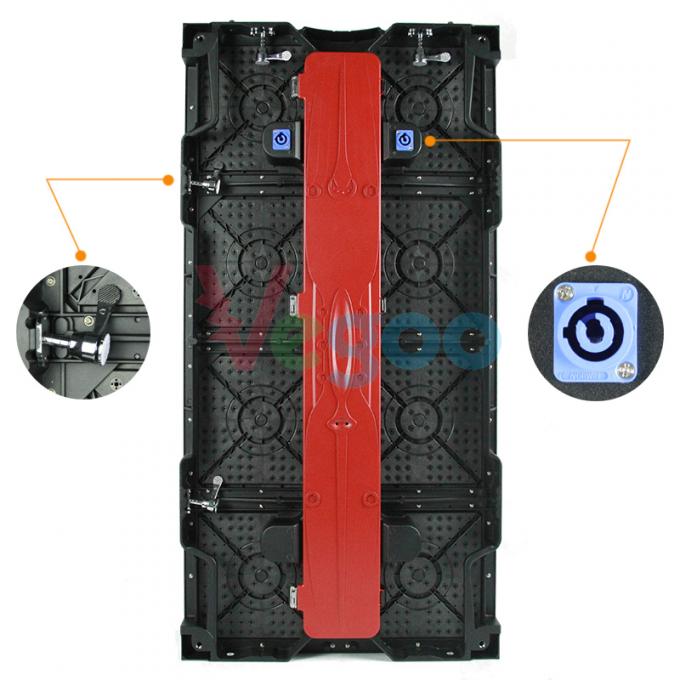

Front Maintenance Magnetic Module
Absolute 4K HD Display Visual Effects
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation
